Antenna Specification:
Working band: 2400-2485 MHz
Energy gain: 12 dBi
Impedance: 50 Ω per connector
Antenna connector: 10m low-loss cable with RP-SMA plug
VSWR: <1.5
Radiation angle in the vertical plane: 32 degrees
Radiation angle in the horizontal plane: 35 degrees
Mount: Cybant

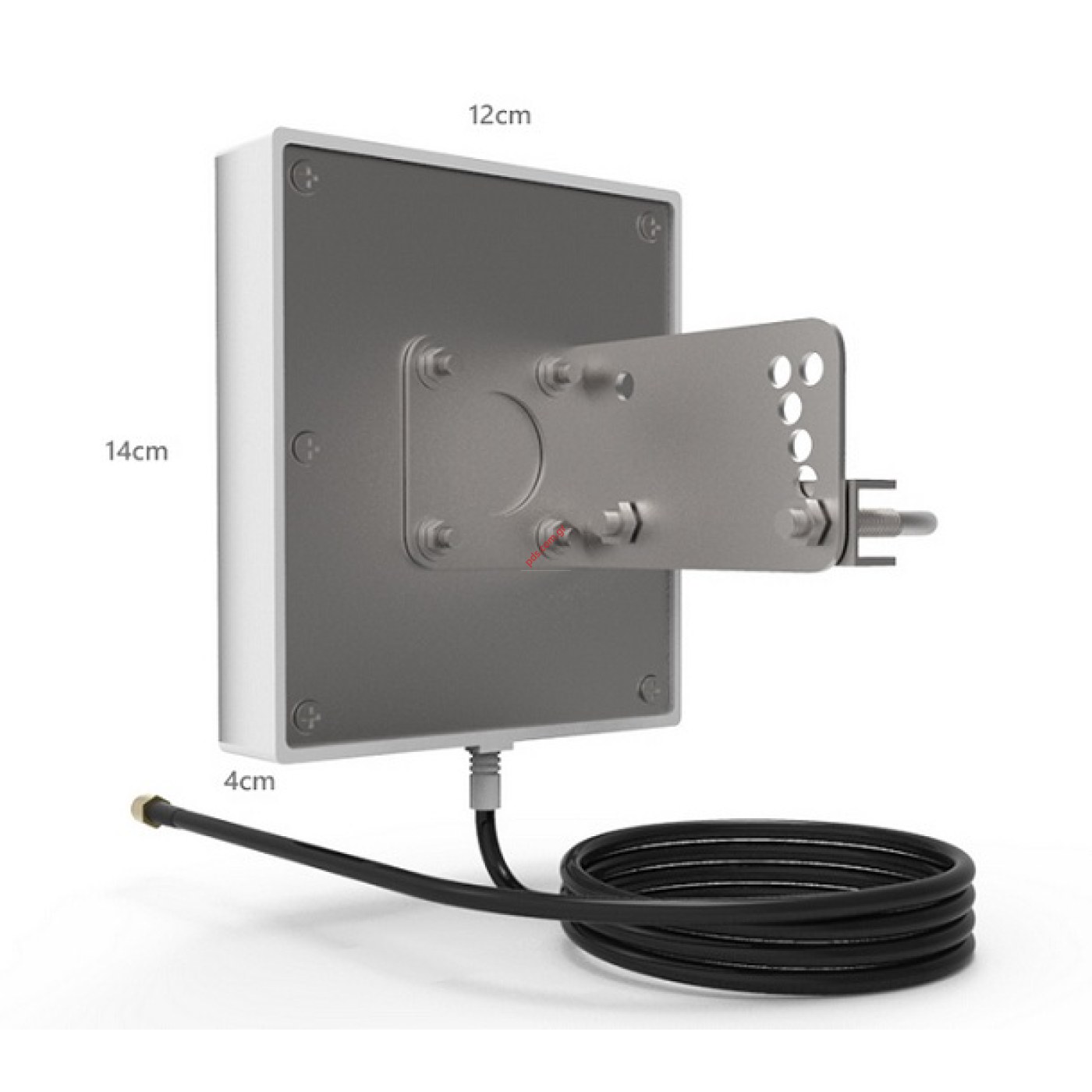

Dimensions: 140x120x40mm
Wind resistance: 200km / h
Polarization: Horizontal and vertical
Cable length: 5m
Kit composition:

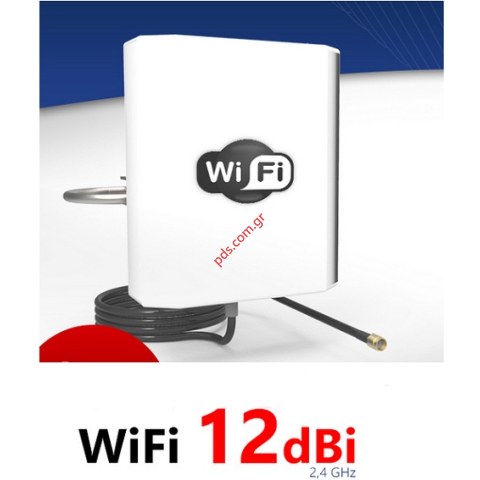

1. 2.4GHz 12dBi WiFi Panel Antenna
2.5m low-loss cable with RP-SMA plug
3. Mounting brackets for the antenna
