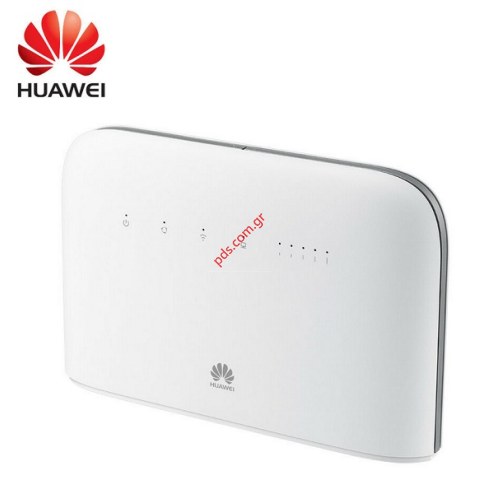

Router, Huawei B715 is a new powerful 4G LTE CAT 9 CPE router that can support up to 64 Wi-Fi devices at the same time. After connecting to the 4G wireless network, you could enjoy wireless internet with download speeds up to 450 Mb/s and upload speed to 50 Mb/s in your home or office. The USB port enables you to connect an external hard drive or printer easily. The available version in the market is B715s-23c for network providers “Play” in Poland and “LMT” in Latvia. By downloading the Huawei HiLink application (available for Android and iOS platforms), you could manage the B715 router conveniently.
Huawei B715s-23c LTE CPE Technical Specifications:
Network Band:
— 4G LTE Band 1/3/7/8/20/28/32/38 (FDD 700/800/900/1500/1800/2100/2600MHz & TDD 2600MHz)
— 3G DC-HSPA+/HSPA+/HSPA/UMTS：2100MHz/900MHz
— 2G EDGE/GPRS/GSM：1900MHz/1800MHz/850MHz/900MHz
Data Speed:
— LTE DL 450Mbps/UL 50Mbps
— LTE FDD: 4*4MIMO+2CA 582Mbps
— LTE TDD: 4*4MIMO+2CA 426Mbps
— DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s
— HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s
— HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s
— WCDMA PS: 384 kbit/s
— EDGE: DL 296 kbit/s, UL 236.8 kbit/s
— GPRS: 85.6 kbit/s
Features:
— LTE Category 9 router
— Access to LTE wireless networks
— Access to Gigabit Ethernet networks
— High-speed data access
— Complies with wireless 802.11b/g/n/ac standards with dual-band(2.4GHz and 5GHz)
— Support up to 64 wireless devices
— SMS
— IPv4 /IPv6 dual stack
— Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function), can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS) voice mode
— Support for Huawei HiLink App
— WPS 2.0
— HOTA updates
— Built-in DHCP Server, DNS RELAY and NAT
— Security services. Provides instant protection to block potential security risks and intrusion attempts
— User-friendly design of LED indicator. Easy to observe the status of equipment

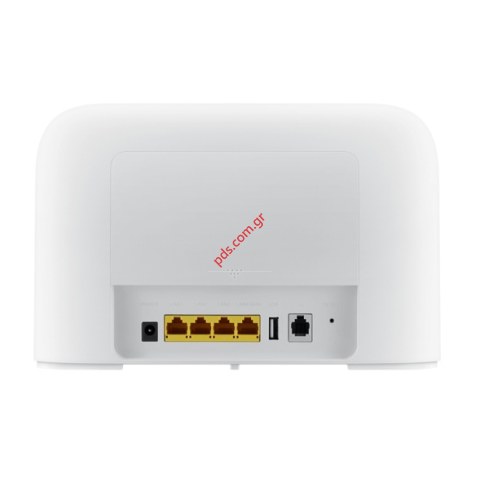

External port
— One power adapter port
— Three LAN port (RJ45)
— One LAN/WAN port (RJ45)
— One telephone port (RJ11)

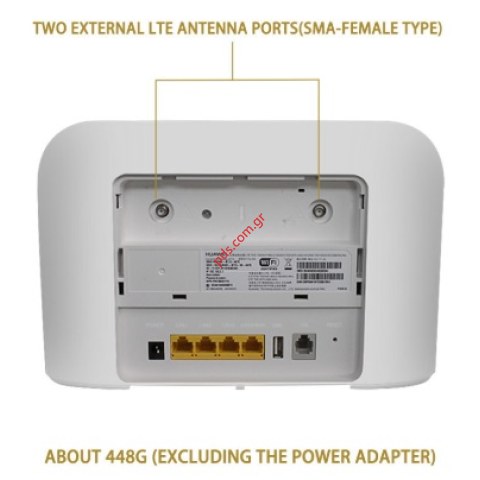

— Two connectors for external antenna (SMA-female Type)
— One micro-SIM card slot
Supported Operating Systems:
Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades
Power consumption: < 12W
AC/DC power supply
— AC: 100 V – 240 V
— DC: 12 V/1 A
Temperature
— Working temperature: 0°C to 40°C
— Storage temperature: -20°C to +70°C
Humidity: 5% – 95%( Non-condensing)
Dimensions: 155mm × 47mm × 240mm
Weight: About 448g (excluding the power adapter)
