TP-Link NET TL-MR3420 WLAN-Router TP-Link TL-MR3420 3G/4G 300Mbit 300 MB/s, 2.4GHz, 802.11n/g/b / USB2.0 / 3G+4G sharing Retail

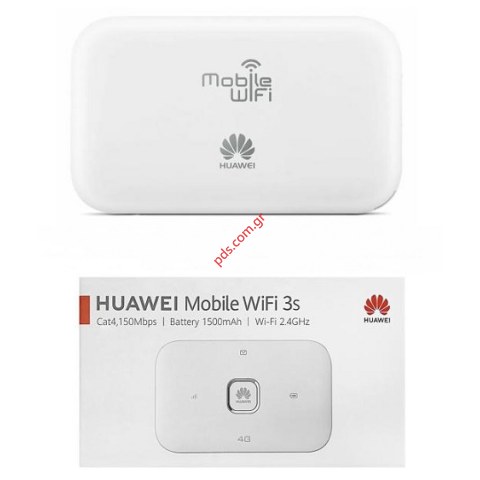

Pocket-sized, extraordinarily light

HUAWEI Mobile WiFi 3s is small and light at just 72g.
You can easily carry it around and access Wi-Fi at home, in the office, on the go, or wherever you go.

Capable of connecting up to 16 Wi-Fi devices, HUAWEI Mobile WiFi 3s lets you share the Internet with your friends and family,
and enjoy your time with them. It also allows you to use your phone, tablet and other Wi-Fi devices at the same time.

It is built with a powerful 1500mAh battery and its intelligent power saving mode makes it more energy efficient.
You get massive power in a compact body that lets you play longer on the go.

Connect HUAWEI Mobile WiFi 3s to your home router to boost your existing Wi-Fi signal and provide coverage to more spaces.
You can stream music on the balcony while sunbathing or watch your favorite shows online in your cozy bedroom.

Specifications:
Wi-Fi: Frequency band: 2.4 GHz, 150 Mbps

Antenna: 4G/3G Antenna type: LTE/UMTS main and diversity antennas

CPU Processor: Balong chipset

Interface: Micro USB/SIM (2FF）

Button: power/reset

LED indicator: LED (signal, battery）

Battery: 3.8V, 1500mAh

Power: Power: <3.5W
AC/DC Power:
AC: 100V-240V 50Hz/60Hz
DC: 5V/1A

Software and functions: HUAWEI AI Life APP (Android), HUAWEI Smart Home APP (iOS)

Environment: Temperature: Operating temperature: 0 - 35 degrees Celsius
Humidity: 5%-95% (non-condensing)

Security: mobile network access, SMS service, WLAN/firewall/NAT/DHCP settings,
Automatic switching of LTE/UTMS/Wi-Fi access mode, IPv6/IPv4 dual stack, network status display, PIN management, etc.

Εγγύηση:

3 χρόνια

300 Mbps Wireless N 4G LTE Router

Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection


Εγγύηση:

3 χρόνια

Cutting edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Specifications

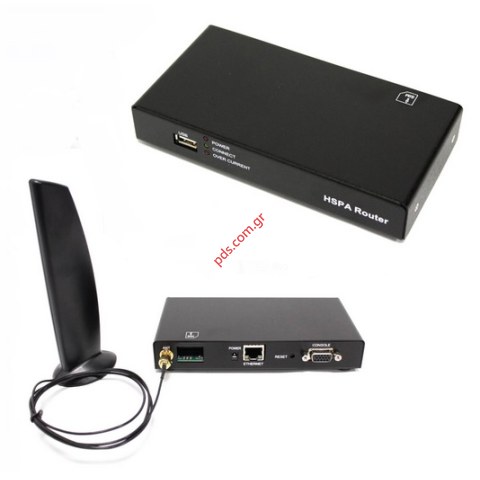

Accepts SIM cards (3V or 1.8V) that contract with the bangives wide 3G.
Compatible with operators for GSM 900 MHz, 2100 MHz for UMTS, EDGE 900 MHz, 1800 MHz and 1800 MHz EDGE for GSM.
Compatible with HSDPA, UMTS, EDGE, GPRS, GSM and SMS standards.
Operating on 5 frequency bands: 850, 900, 1800, 1900 and 2100 MHz.
HSDPA/UMTS (WCDMA/FDD) 2100 MHz HSDPA. To 3.6 Mbps downlink, uplink 384 Kbps. UMTS: up to 384 Kbps downlink, 384 Kbps uplink. ANDDGE (E-GPRS) multislot class 10 to 236.8 Kbps and downlink, 118 Kbps uplink. GPRS multislot class 10. SMS, text messages/data.

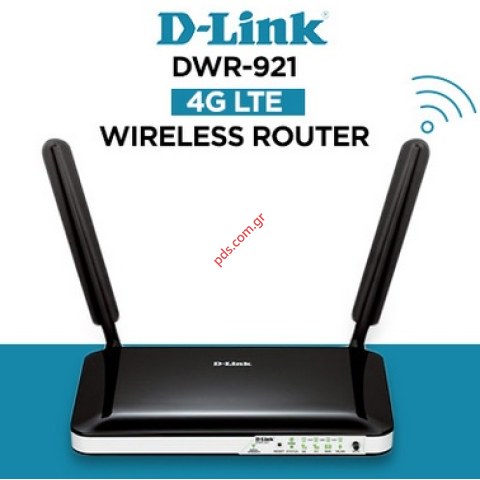

The D-Link DWR-921 4G LTE Router allows you to access and share your 4G LTE or 3G mobile broadband connections. Once connected, you can transfer data, stream media and send SMS messages. You can simply insert your SIM/USIM card and share your 4G LTE or 3G Internet connection through a secure wireless network or any of the four Ethernet ports. Dual-band 4G LTE and 3G supports allow automatic 3G connection, if the 4G LTE signal strength becomes low. The additional xDSL/FTTH Ethernet WAN option gives fail-safe connectivity, if either your fixed line or mobile broadband fails.

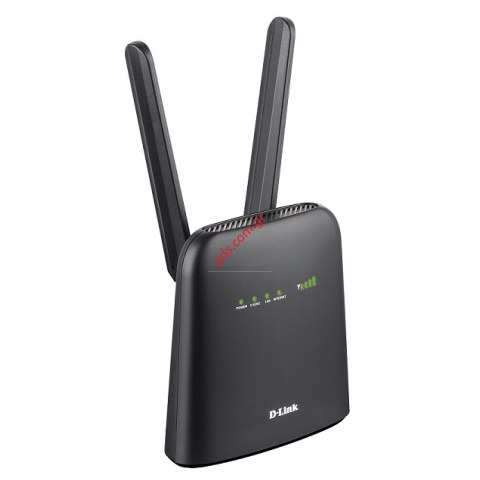

The DWR-920V Wireless N300 4G LTE Router acts as your personal Wi-Fi hotspot allowing you to share a 4G LTE connection with up to 10 Wi-Fi devices. It also comes with Voice functionality to make phone calls over the Internet.

High-speed 4G LTE/3G connection up to 150Mbps downlink/50Mbps uplink
Wireless N with speeds up to 300Mbps
Share a 4G LTE connection with up to 10 Wi-Fi devices
Multiple 4G LTE (external) and Wi-Fi (internal) antennas for improved coverage
2 x Gigabit LAN ports, w/one port configurable as WAN
RJ-11 phone port to connect a home phone
Onboard Micro SIM slot
WPA/WPA2 and Wi-Fi Protected Setup (WPS)

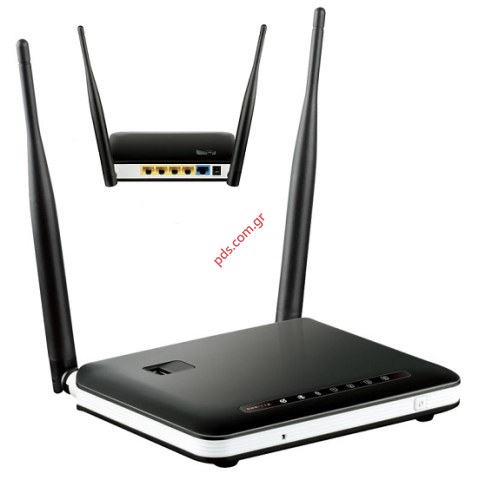

The DWR-116 Wireless N300 Multi-WAN Router allows you to share superfast 4G LTE/3G mobile Internet3 simultaneously to your smartphone, tablet, notebook and desktop computer. Universal 4G LTE/3G USB dongle support from any mobile operator3, this is router is the ideal solution for setting up a Internet connection for work to share with your colleagues or when you are on holiday with your family and friends. Wireless N allows you to create a fast and secure high speed personal hotspot with wireless speeds of up to 300 Mbps1. Simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support allows you to combine Internet connections to give you faster Internet speeds. You can also set up fail-safe Internet should either connections fail.

Reliable, Uninterrupted and Faster Internet Connection

Create a load sharing and fail-safe Internet connection with simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support A 10/100 Ethernet WAN port allows you to attach a DSL/Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE/3G network whenever the WAN link is lost. Load sharing function allows the Internet connections to be combined to give you faster Internet speeds. The built-in QoS management feature also prioritises traffic to ensure that the most important data receives optimum bandwidth.

Incredible Wireless Speeds

The DWR-116 supports the latest, high-speed 4G LTE mobile broadband technology, allowing you to achieve blazing fast mobile broadband speeds. In addition to this, the Wireless N300 Multi-WAN Routerʼs N300 technology means that you can connect wireless clients to the router at up to 300 Mbps, with the enhanced range and reliability of the 802.11n wireless standard.

Advanced Network Security

The DWR-116 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DWR-116 also utilises dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.

Simple to Install and Use

The Wireless N300 Multi-WAN Router can be installed quickly and easily almost anywhere. The intuitive setup wizard will get you set up and connected in no time. This router is great for situations where an impromptu wireless network is required, or where conventional wired network access is unavailable. The DWR-116 can even be installed on buses, trains, or boats, allowing passengers to access the internet while commuting.

Technical Specifications:

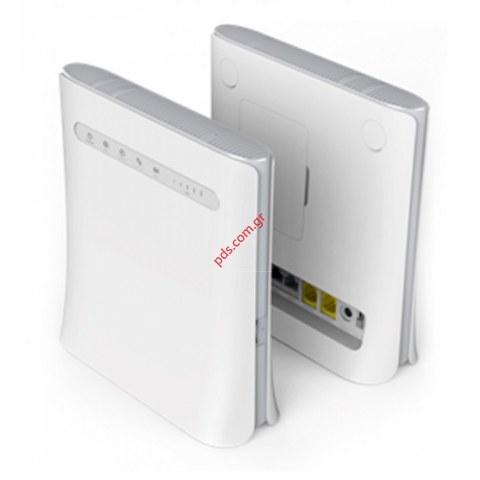

* LTE Cat6 wireless router/CPE (portable)

* Chipset: Qualcomm WTR3925 (28nm process) and Qualcomm MDM9230 (20nm process)

* Support LTE FDD/LTE TDD/UMTS/GSM networks

* Support 4G LTE Band 1/3/7/8/20 (700/900/1800/2100/2600MHz)

* Support 3G Band 900/2100MHz and 2G GSM 850/900/1800/1900MHz

* FDD-LTE download speed to 300mbps and upload speed to 50mbps (Category 6)

* TDD-LTE download speed to 220+mbps and upload speed to 10+mbps

* 3G DC-HSPA+ download speed to 42mbps and upload speed to 11.2mbps

* WiFi standard: 802.11 b/g/n/ac; 2.4 GHz 3 x 3 MIMO, peak speed to 450Mbps; 5 GHz, 2 x 2 MIMO, peak speed to 867 Mbps

* Support up to 64 wireless devices to access the internet simultaneously

* Support VoLTE Call in high quality

* Built-in Battery: 3000mAh, support a conference call for up to 4 hours or share a 4G network for up to 3 hours

* Interfaces: 4 * RJ 45(GE 1 * WAN/LAN + 3 * LAN) + 2 * RJ11 + 1 * USB

* WiFi range: covers more than 500 square meters

* USB interface to share pictures, files or videos by a USB Disk or a small hard disk through same WiFi network

* Special features: CSFB/VoLTE via RJ11, HD Voice, Web UI, IPV6, WPS

* Dimension: 180 × 170 × 30 mm

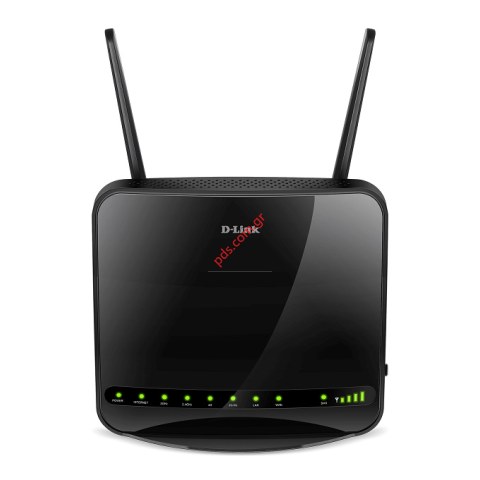

Cutting edge 4G network share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
AC1200 Wi-Fi creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

INDUSTRIAL CELLULAR ROUTER RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.

Wireless mode

IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security

WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID

SSID stealth mode and access control based on MAC address
WiFi users

Up to 50 simultaneous connections
Wireless Hotspot

Captive portal (Hotspot), εσωτερικός/εξωτερικός διακομιστής Radius, ενσωματωμένος σε προσαρμόσιμη σελίδα προορισμού

ETHERNET

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN

1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Δίκτυο

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall

Port forward, traffic rules, custom rules
DHCP

Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS

Supported >25 service providers, others can be configured manually
Network backup

WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing

Balance Internet traffic over multiple WAN connections
Hotspot

Internal/external Radius server, captive portal, built in customizable landing page
SSHFS

Possibility to mount remote file system via SSH protocol

Ασφάλεια

Authentica

Pre-shared key, digital certificates, X.509 certificates
Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN

Port and tag based VLAN separation
Mobile quota control

Custom data limits for SIM card
WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control

Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption

DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec

IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE

GRE tunnel
PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3 support
Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programʼs code
DMVPN

Method of building scalable IPsec VPNs
SSTP

SSTP client instance support
ZeroTier

ZeroTier VPN client support
WireGuard

WireGuard VPN client and server support

MODBUS TCP SLAVE

ID range

Respond to one ID in range [1;255] or any
Allow Remote Access

Allow access through WAN
Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

Supported functions

01, 02, 03, 04, 05, 06, 15, 16
Supported data formats

8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT

MQTT GATEWAY

MQTT Gateway

Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes

TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA

Firmware update from server, automatic notification
SSH

SSH (v1, v2)
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT

MQTT Broker, MQTT publisher
SNMP

SNMP (v1, v2, v3), SNMP Trap
JSON-RPC

Management API over HTTP/HTTPS
MODBUS

MODBUS TCP status/control
RMS

Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things

Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU

Mediatek MIPS 24Kc 580 MHz
RAM

128 MB, DDR2
FLASH storage

16 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system

RutOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided

INPUT / OUTPUT

Input


1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output


1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events

Email, RMS, SMS
I/O juggler

Allows to set certain I/O conditions to initiate event

POWER

Connector

4-pin industrial DC power socket
Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption

< 6.5 W Max

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)

Ethernet

2 x RJ45 ports, 10/100 Mbps
I/Oʼs


1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs

3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power

1 x 4-pin power connector
Antennas


2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
Reset

Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

Casing material

Aluminium housing, plastic panels
Dimensions (W x H x D)

83 x 25 x 74 mm
Weight

125 g
Mounting options

Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C
Operating humidity

10% to 90% non-condensing
Ingress Protection Rating

IP30

REGULATORY & TYPE APPROVALS

Regulatory

CB

SAFETY

Standards

IEC 62368-1:2018 (CB Scheme)

PACKAGE CONTAINS

Router RUT200
9 W PSU
2 x LTE antennas (swivel, SMA male)
1 x WiFi antenna (swivel, RP-SMA male)
QSG (Quick Start Guide)
Packaging box

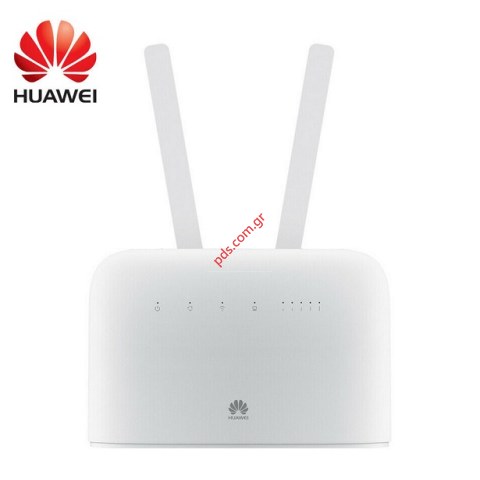

Router, Huawei B715 is a new powerful 4G LTE CAT 9 CPE router that can support up to 64 Wi-Fi devices at the same time. After connecting to the 4G wireless network, you could enjoy wireless internet with download speeds up to 450 Mb/s and upload speed to 50 Mb/s in your home or office. The USB port enables you to connect an external hard drive or printer easily. The available version in the market is B715s-23c for network providers “Play” in Poland and “LMT” in Latvia. By downloading the Huawei HiLink application (available for Android and iOS platforms), you could manage the B715 router conveniently.
Huawei B715s-23c LTE CPE Technical Specifications:

Network Band:
— 4G LTE Band 1/3/7/8/20/28/32/38 (FDD 700/800/900/1500/1800/2100/2600MHz & TDD 2600MHz)
— 3G DC-HSPA+/HSPA+/HSPA/UMTS：2100MHz/900MHz
— 2G EDGE/GPRS/GSM：1900MHz/1800MHz/850MHz/900MHz

Data Speed:
— LTE DL 450Mbps/UL 50Mbps
— LTE FDD: 4*4MIMO+2CA 582Mbps
— LTE TDD: 4*4MIMO+2CA 426Mbps
— DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s
— HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s
— HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s
— WCDMA PS: 384 kbit/s
— EDGE: DL 296 kbit/s, UL 236.8 kbit/s
— GPRS: 85.6 kbit/s

Features:
— LTE Category 9 router
— Access to LTE wireless networks
— Access to Gigabit Ethernet networks
— High-speed data access
— Complies with wireless 802.11b/g/n/ac standards with dual-band(2.4GHz and 5GHz)
— Support up to 64 wireless devices
— SMS
— IPv4 /IPv6 dual stack
— Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function), can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS) voice mode
— Support for Huawei HiLink App
— WPS 2.0
— HOTA updates
— Built-in DHCP Server, DNS RELAY and NAT
— Security services. Provides instant protection to block potential security risks and intrusion attempts
— User-friendly design of LED indicator. Easy to observe the status of equipment

External port
— One power adapter port
— Three LAN port (RJ45)
— One LAN/WAN port (RJ45)
— One telephone port (RJ11)
— Two connectors for external antenna (SMA-female Type)
— One micro-SIM card slot

Supported Operating Systems:
Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades

Power consumption: < 12W
AC/DC power supply
— AC: 100 V – 240 V
— DC: 12 V/1 A

Temperature
— Working temperature: 0°C to 40°C
— Storage temperature: -20°C to +70°C

Humidity: 5% – 95%( Non-condensing)

Dimensions: 155mm × 47mm × 240mm
Weight: About 448g (excluding the power adapter)

Weʼve designed this router with a constant internet connection in mind. You can create failover connectivity if either your fixed line or mobile broadband fails.

Simply connect your main broadband to the WAN Port and follow the setup instructions. The router will instantly switch to the backup mobile internet when you need it most, allowing you to stay connected and enjoy the internet without interruptions so you can maintain your productivity.
Superb speeds

Connect to your 4G LTE mobile connection with throughput speeds of up to 150 Mbps, giving you the speed you need for fast, responsive internet access.
Includes built-in dual-active firewalls (SPI and NAT) to protect against malicious attacks. The latest WPA/WPA2 wireless encryption helps keep your wireless network secure and your traffic safe, helping stop unauthorised users from accessing your network.

Using the latest Wireless AC technology, which can provide combined transfer rates of up to 1200 Mbps, the DWR-953 operates on the 2.4 GHz and 5 GHz wireless bands at the same time using concurrent dual-band technology.
The DWR-953 Wireless AC1200 4G LTE Multi-WAN Router allows you to seamlessly switch to a 4G LTE mobile internet backup network when your broadband internet goes down, with download speeds of up to 150 Mbps, so you can keep using the internet without interruptions.
Wireless standard Wireless AC
Frequency band mode Dual-band simultaneous
Wireless speed 300 Mbps 2.4 GHz

867 Mbps 5 GHz
Antenna type 2 detachable omni-directional antennas
Wired interface 1 x Gigabit Ethernet WAN

4 x Gigabit Ethernet LAN
3G/4G LTE support 3G/4G LTE via SIM

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

FEATURES
MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
SMS/Call SMS status, SMS configuration, Call utilities
ETHERNET
LAN 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX
NETWORK
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, MQTT, Wake on LAN (WOL)
Routing Static routing
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported >25 service providers, others can be configured manually
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
FOTA Firmware update from sever, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration
MQTT MQTT Broker, MQTT publisher
JSON-RPC Management API over HTTP/HTTPS
Modbus Modbus TCP status/control
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU ARM Cortex-A7 1.2 GHz CPU
RAM 128 MB (50 MB available for userspace)
FLASH memory 512 MB (70 MB available for userspace)
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenLinux based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
INPUT/OUTPUT
Configurable I/O 2 x Configurable Digital Inputs/Outputs
Events SMS status
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max
Power consumption < 5 W
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
Ethernet 1 x RJ45 port, 10/100/1000 Mbps
I/Os 2 x Configurable Digital Inputs/Outputs on 4 pin power connector
USB Virtual network interface via USB
Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 4 pin DC connector with 2 x configurable Digital Inputs/Outputs
Anntenas 1 x SMA for LTE
Reset Restore factory settings button
PHYSICAL SPECIFICATIONS
Casing material Aluminum housing
Dimensions 60 mm x 70 mm x 18 mm (H x W x D)
Weight 134 g
Mounting options Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
EMI
Standards Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
ESD EN 61000-4-2:2009
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004
RF
Standards EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2
SAFETY
Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017

Radio specifications
RF technologies
Max RF power
2G, 3G, 4G, WiFi, GNSS
33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE, 20 dBm@ WiFi
Mobile antenna 690/900/1800/1900/2100/2700 MHz, 50 Ω, VSWR < 3.2, gain** 3.5 dBi, omnidirectional, FAKRA D
female connector
Power adapter Input: 0.4A@100-240VAC, Output: 9VDC, 1A, 4-pin plug
WiFi antenna 1575.42~1602 MHz, 2.2-5 VDC, VSWR < 1.5, active total gain** 26 dB (typ.), RHCP polarization, FAKRA C
female connecto

FEATURES
Copyright © 2021, TELTONIKA NETWORKS. Specifications and information given in this document are subject to change by TELTONIKA NETWORKS without prior notice.
4
Firmware update from sever, automatic notificationFOTA
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel logWEB UI
SSH (v1, v2)
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
SSH
SMS
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Teltonika Remote Management System (RMS)
TR-069
RMS
DATASHEET // RUT850
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
FIRMWARE / CONFIGURATION
FIRMWARE CUSTOMIZATION
3 x connection type status LEDs, 1 x WiFi status LED, 5 x connection strength LEDs, 1 x Power LED
1 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Status LEDs
SIM
Update FW from file, check FW on server, configuration profiles, configuration backup, restore pointWEB UI
Update FW/configuration from server
Update FW/configuration for multiple devices
FOTA
RMS
Update FW without losing current configurationKeep settings
RutOS (OpenWrt based Linux OS)Operating system
Busybox shell, Lua, C, C++
GPL package with built environment provided
Supported languages
Development tools
1 x 4 pin DC connector
2 x FAKRA connectors for LTE, 1 x FAKRA connector for GNSS
Power
Antennas
Reboot/Factory reset buttonReset
PHYSICAL SPECIFICATION
Plastic housing, plastic panels
131 x 18 x 79 mm
Casing material
Dimensions (W x H x D)
115 gWeight
POWER
9 – 30 VDC, reverse polarity protection, overvoltage protection up to 60 VDC, surge protection >66 VDC 10us maxInput voltage range
4 pin DC power socket
< 5W
Connector
Power consumption
LOCATION TRACKING
GPS, GLONASS, BeiDou, Galileo and QZSSGNSS
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA 0183
Coordinates
NMEA
Supported server software TAVL, RMSServer software
Location without using GPS, get approximate location based on mobile tower on RMS
Hot start < 2.5 s, Warm start < 26 s, Cold start < 35 s
Mobile Network Geolocation
Startup
55 simultaneous satellites channelsTracking
-157 dBM
< 1.5 m
Sensitivity
Accuracy
Configurable multiple geofence zonesGeofencing
MONITORING & MANAGEMENT
Copyright © 2021, TELTONIKA NETWORKS. Specifications and information given in this document are subject to change by TELTONIKA NETWORKS without prior notice.
5
EMI IMMUNITY
Draft EN 303 446-1 V1.1.0Standards
EN61000-4-2:2009
EN 61000-4-3:2006, A1:2008 and A2:2010
ESD
RS
EN 61000-4-4:2004EFT
EN 61000-4-6:2009CS
DATASHEET // RUT850
RF
EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
EN 50665:2017, EN 62311:2018

STANDARD PACKAGE CONTAINS*
• Router RUT850
• Power cable (2 m)
• 2 x LTE antennas (adhesive, FAKRA-D, 3 m cable)
• 1 x GNSS antenna (adhesive, FAKRA-C, 3 m cable)
• 2 x Screws
• 2 x Adhesive tape profiles
• 2 x Hook and loop profiles
• SIM needle
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box

FIRMWARE

Bridge mode
Static routes
NTP
Wireless Hotspot
Wireless Client
Wireless AP
Ping reboot
Periodic reboot
Real-time graphs
Backup WAN
Mobile Traffic counter
Connection status overview bar
Configuration backup/restore
IPsec
GRE Tunnel
OpenVPN
PPTP
L2TP
SNMP
SNMP Trap
Send/receive SMS
Status via SMS
SMS reboot
Mobile enable/disable via SMS
Wireless enable/disable via SMS
OpenVPN enable/disable via SMS
Web Filter
Mobile Data Limit
Configuration Profiles
Event logging
Call Utilities
Disable Roaming
Access control safety
VLAN
CLI
Firewall
IP/MAC filter
DHCP server
Dynamic DNS
RMS

The MTX-Router-EOS is an entry level router developed for industrial applications. It has a very compact design with a very rugged enclosure and accessories to be mounted on a wall mount. It features dual SIM, 3x Ethernet, VPN client and 3 antennas included (another one for GPS optional).

The MTX-Router-EOS can be used in many different IoT applications like kiosk, telemetry, remote sensing, smart grid, security, industrial automation, etc..


CHARACTERISTICS:

4G

Dual SIM

WiFi

3x Ethernet

RS232 RS485

DIN rail

Cervello Stem

Modbus

VPN

DHCP

Firewall

Serial tunnelling

DynDNS

Programmable autoreset

MQTT

SMS control
CONNECTIVITY:

2x SMA F antenna connectors: LT E
1x SMA F RP antenna connector: WiFi

1x SMA F antenna connectors: GPS (optional)

3x RJ45: Ethernet 10/100 BaseT

1x terminal block: RS232/485

Dual SIM card

DC power terminal block: power input
SPECIFICATIONS:

EUROPE: LTE-FDD B1/B3/B7/B8/B20/B28A; LTE-TDD B38/B40/B41, WCDMA B1/B8; GSM/EDGE B3/B8; GNSS GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (optional)

LTE FDD: DL 150Mbps, UL 50Mbps

LTE-TDD: DL 130Mbps, UL 30Mbps

DC-HSPA+: DL 42Mbps, UL 5.76Mbps

WCDMA: DL 384Mbps, UL 384kbps

EDGE: DL 296Mbps, UL 236.8kbps

GPRS: DL 107Mbps, UL 85.6kbps

INTERFACES:

4G/3G/2G connectivity
3x Ethernet 10/100 BaseT
1x COM (RS232 or RS485)
WiFi 802.11 b/g/n
GPS (optional)

RUT950 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication. RUT950 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

LTE up to 100 Mbps DL and 50 Mbps UL
DC-HSPA+ up to 42 Mbps DL and 5.73 Mbps UL
Multiple LTE FDD bands
Quadband UMTS and GSM
IEEE 802.11b/g/n WiFi with 2x2 MIMO up to 300 Mbps
IEEE 802.3 and IEEE 802.3u standards
Four Ethernet ports
Durable aluminum housing
External antennas
Dual SIM
Dual imag

Professional rugged Dual SIM 4G LTE & WiFi cellular router. Highly secure and reliable industrial device equipped with Ethernet, Digital & Analogue I/O, RS232, RS485, GNSS (GPS), microSD and USB interfaces.

DESCRIPTION
RUT955 is a highly reliable and secure LTE router with I/O, GNSS and RS232/RS485 for professional applications. Router delivers high performance, mission-critical cellular communication and GPS location capabilities. RUT955 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

FEATURES
MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge Direct connection (bridge) between mobile ISP and device on LAN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users up to 100 simultaneous connections
Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
SSTP SSTP client instance support
MODBUS
Modbus TCP slave
ID range 1-255
Modbus TCP master
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
Modbus RTU master (RS232)
Supported baud rates From 300 to 115200
Supported functions 01, 02, 0

The RUT900 is a HSPA & 3G router with wireless high speed internet, 4 ethernet ports and an internal HSPA + modem which can reach speeds up to 21 Mbps.
The RUT900 supports standards IEEE802.11n and IEEE802.11b / g WLAN and provide wireless download speed and transmission to 150 Mbps.
It provides better performance, high fidelity communication and is equipped with seamless connectivity system via dual SIM, with failover function to get signal from an alternative provider when you are there that the former has no coverage.

Also another very good feature is that the RUT900 can work with landline OTE over a WAN port and the mobile network and in case cut the fixed network then RUT900 automatically will turn to mobile network

The RUT900 is a HSPA & 3G router with wireless high speed internet, 4 ethernet ports and internal HSPA + modem that can reach speeds up to 21 Mbps.
The RUT900 supports standards IEEE802.11n and IEEE802.11b / g WLAN and provide wireless reception and transmission speed up to 150 Mbps.
It provides better performance, high fidelity communication and is equipped with seamless connectivity system through dual SIM, with failover function to get a signal from an alternative provider if you are there the first has no coverage.

Also another great feature is that the RUT900 can work with fixed OTE line via WAN port and the mobile network and in the event that cut the fixed network then automatically RUT900 will turn to mobile network

RUT955 is a highly reliable and secure LTE router with I/O, GNSS and RS232/RS485 for professional applications. Router delivers high performance, mission-critical cellular communication and GPS location capabilities. RUT955 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

This powerful Teltonika LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.

Next generation LTE-A Cat6 cellular IoT router with Dual SIM, Carrier Aggregation and Gigabit Ethernet interfaces. Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system.Learn more on wiki page


DESCRIPTION

This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.


FEATURES
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge Direct connection (bridge) between mobile ISP and device on LAN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display


ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover


NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Atack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter


VPN
OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code


MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)


SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR2
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration


FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with built environment provided
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software supported server software TAVL, RMS
Mobile Network Geolocation Location without using GPS, get approximate location based on mobile tower on RMS
Geofencing Configurable multiple geofence zones


USB
Data rate USB 2.0
Applications Samba share, custom scripts
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS


POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 11 W Max


PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin industrial DC power socket
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Reset/restore to default button


PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement


OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30



STANDARD PACKAGE CONTAINS

Router RUTX09
Euro PSU
2 x LTE antennas (swivel, SMA male)
1 x GNSS antenna
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
Packaging box0

Geneko GWG gateway is compact and cost effective communications solution that provides cellular capabilities for fixed and mobile applications such as data acquisition, smart metering, remote monitoring and management. GWG supports a variety of radio bands options on 2G, 3G and 4G cellular technologies. It is reliable solution thanks to high performance hardware platform and VPN/Security powerful options. When coupled with the rich embedded intelligence, it is the perfect choice for a broad set of M2M solutions.

GWG comes with numerous connectivity options and multiple configuration methods. It allows you to connect your existing Ethernet and serial devices using basic configuration. Besides Ethernet, RS-232 and RS-485/RS-422 serial ports, the device is equipped with USB port as well as 3 configurable digital input/outputs available on GPIO Connector, and digital input/output and analog input available on power connector. Its small size and easy installation makes it suitable for challenging and size-constrained applications. GWG gateway can be used on either desktop or mounted on a DIN rail.

Features

Compact, cost effective communication solution
Cellular capabilities for M2M applications
Support for remote Management and Monitoring
Reliable, high performance solution
Small-sized, convenient for easy installation and rapid deployment
Multiple configuration methods, including web/serial console and Telnet
Numerous connectivity options: Ethernet, RS-232, RS-485/RS-422, USB port, 3/3+1/1 Digital I/O, Analog input

Protocols and Features

Network: TCP/IP, UDP/IP, DNS, DHCP client, DHCP server, DynDNS
Routing: NAT, Static route, PAT, Port forwarding, RIP, VRRP
Application: SMS remote control, SMS sending, Telnet/SSH, SNMP, NTP, CLI, Chroot, Support for shell scripts, LUA, Perl and compiled C/C++ executables, Remote management using Geneko application
Serial: Serial over Ethernet, Modbus (ASCII, RTU, Variable), Console on Serial port
Events reporting
- Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power
- Report Types: Digital Output , SMS, SNMP Trap
VPN/Security
- IPSec, SSL, and GRE VPN Client
- Up to 3 VPN Tunnels
- AES, 3DES, Blowfish
- IKE Encryption
- OpenVPN, L2TP
- Tunnels using certificates (CA certificates, private certificate, key certificate)
- Tunnels using pre-shared key files
Other
- DMZ, Port Filtering, IP Filtering
- Trusted IP (Local Gateway Function)
- MAC Address Filtering
- Advanced scripting functions
- System control, LED management, GPIO, Diagnostics
- Settings backup (Export/Import configuration), Logs reading

Certifications

CE certified
ISO 9001:2008

Geneko GWG gateway is compact and cost effective communications solution that provides cellular capabilities for fixed and mobile applications such as data acquisition, smart metering, remote monitoring and management. GWG supports a variety of radio bands options on 2G, 3G and 4G cellular technologies. It is reliable solution thanks to high performance hardware platform and VPN/Security powerful options. When coupled with the rich embedded intelligence, it is the perfect choice for a broad set of M2M solutions.

GWG comes with numerous connectivity options and multiple configuration methods. It allows you to connect your existing Ethernet and serial devices using basic configuration. Besides Ethernet, RS-232 and RS-485/RS-422 serial ports, the device is equipped with USB port as well as 3 configurable digital input/outputs available on GPIO Connector, and digital input/output and analog input available on power connector. Its small size and easy installation makes it suitable for challenging and size-constrained applications. GWG gateway can be used on either desktop or mounted on a DIN rail.

Features

Compact, cost effective communication solution
Cellular capabilities for M2M applications
Support for remote Management and Monitoring
Reliable, high performance solution
Small-sized, convenient for easy installation and rapid deployment
Multiple configuration methods, including web/serial console and Telnet
Numerous connectivity options: Ethernet, RS-232, RS-485/RS-422, USB port, 3/3+1/1 Digital I/O, Analog input

Protocols and Features

Network: TCP/IP, UDP/IP, DNS, DHCP client, DHCP server, DynDNS
Routing: NAT, Static route, PAT, Port forwarding, RIP, VRRP
Application: SMS remote control, SMS sending, Telnet/SSH, SNMP, NTP, CLI, Chroot, Support for shell scripts, LUA, Perl and compiled C/C++ executables, Remote management using Geneko application
Serial: Serial over Ethernet, Modbus (ASCII, RTU, Variable), Console on Serial port
Events reporting
- Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power
- Report Types: Digital Output , SMS, SNMP Trap
VPN/Security
- IPSec, SSL, and GRE VPN Client
- Up to 3 VPN Tunnels
- AES, 3DES, Blowfish
- IKE Encryption
- OpenVPN, L2TP
- Tunnels using certificates (CA certificates, private certificate, key certificate)
- Tunnels using pre-shared key files
Other
- DMZ, Port Filtering, IP Filtering
- Trusted IP (Local Gateway Function)
- MAC Address Filtering
- Advanced scripting functions
- System control, LED management, GPIO, Diagnostics
- Settings backup (Export/Import configuration), Logs reading

Certifications

CE certified
ISO 9001:2008

New RUT523, RUT525, RUT535 and RUT538 are compact WiMAX routers with high speed wireless and Ethernet connections. Compliant with IEEE802.16e-2005 WiMAX Wave 2 standard it supports mobile wireless connectivity.
Router support latest IEEE802.11n and IEEE802.11b/g WLAN standards and provide wireless receiving and transmitting rate up to 150 Mbps.

Mobile module

5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

3GPP Release

Release 16

Power
Connector

1 x 4-pin industrial DC power socket

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Input voltage range

4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max

USB Type-C: 5 VDC

Power consumption

Idle: < 5 W, Max: < 12 W

Physical Interfaces
Status LEDs

1 x Power LED, 1 x 5G LED, 1 x Network LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1 x 4-pin power connector

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Antennas

4 x SMA for Mobile

Other

1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

83 x 25 x 85.4 mm

Weight

94.5 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

TRM SOFTWARE
Management Software

Windows Connection Manager, Modem Manager (Linux)

USB Serial Driver

Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13

GNSS Driver

Android 4.x ~ 13

RIL Driver

Android 4.x ~ 13

NDIS Driver

Windows 7/8/8.1/10/11

MBIM Driver

Windows 8/8.1/10/11, Linux 3.18~6.3

Gobinet Driver

Linux 2.6/3.x/4.1~4.14

QMI_WWAN Driver

Linux 3.4~6.3

Regulatory & Type Approvals
Regulatory

WEE

EMC Emissions & Immunity
Standards

EN 55032:2015+A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 301 489-1 V2.2.3

EN 301 489-52 V1.2.1

AS/NZS CISPR 32:2015+A1:2020

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014+A1:2017

CS

EN 61000-4-6:2014

DIP

EN 61000-4-11:2020

RF
Standards

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

AS/CA S042.1:2022

AS/CA S042.4:2022

AS/CA S042.5:2022+A1:2022

FCC Part 22

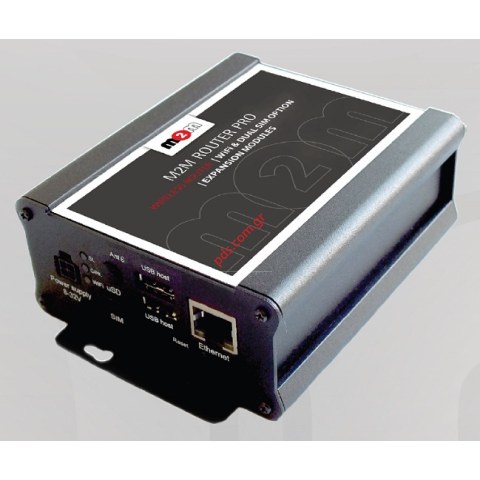

DIN rail mountable, versatile, wireless industrial router family with Ethernet port and several expansion possibilities.

The device uses the open source OpenWRT® operation system, supporting web admin interface.

The following expansion options can be chosen: DUAL SIM expander, WiFi module, RS232/RS485, Wireless MBus or IO-expansion.

Communication
• Supporting the 3G, 4G LTE, LTE 450 MHz (Gemalto®, Telit® Cat.3, LTE450 Cat.4 miniPCIe modules)
• Usage of Dual SIM cards (optional)
• Optional WiFi (for the connected devices)
• It can be extended with the listed modules
• Self-developed expansion modules to integrate
• Ethernet LAN/WAN



Software/Configuration
• Easy to use open source OpenWRT® software
• Opportunity for the developers to implement and use self-developed system or applications
• The device can be parameterized on its web page by the local/remote interface
• Firmware & software updates and parameterizing remotely by the M2M Device Manager® software


Security
• System monitoring, auto restart mode
• High availability
• Extended tests during the development
• Protection from network attack, traffic monitoring helps to reduce data usage

Application
Wireless data transmission, routing
Secondary/backup route
Industrial M2M machines (to a Scada)
Utility smart meters (remote readout)
Safety camera, DVR

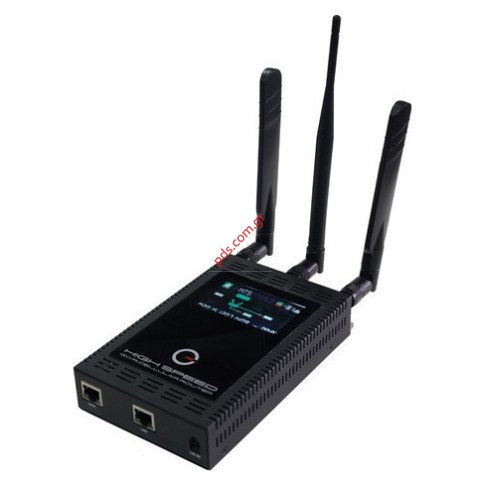

High Speed cellular router series GWR has been specially designed for those applications where high speed data transfers (up to 100 Mbps) over Cellular network are required. New GWR Router Series enables versatile connectivity owing to mobile link, ADSL and Wi-Fi options and connection with the master router. Complete series is based on reliable and high performance hardware platform using ARM Cortex-A8 microprocessor. Secure data transfer via mobile networks is provided through VPN (IPsec, OpenVPN and GRE).

The reliability of device is enhanced with multiple connectivity options. Take advantage of two SIM card slots for automatic switch to alternative provider in case of failure of the primary connection. Additionally, you can also choose WiFi and ADSL connectivity where the infrastructure on the field allows such connections.

You can choose the most appropriate one for you for sure, between numerous models of these routers: with 1 or 4 Ethernet ports and ADSL2+ port or 2 or 5 Ethernet ports (without ADSL2+) bundled with Wi-Fi. GWR High Speed series is now improved with LCD display enabling user-friendly monitoring of router status such as: currently active SIM card, GSM provider, ports usage (WAN, LAN, Wi-Fi, ADSL), IP address, signal strength/quality and more. With a robust all-metal case and top quality components inside, durability of the product is guaranteed.



Key benefits



High speed data transfer
LCD display for convenient monitoring
1 or 4, or 2 or 5 Ethernet ports
ADSL2+ option with WiFi
Complete set of advanced features
User friendly web based configuration interface
Top rated CLI for IT professionals
Dedicated Remote Management and Monitoring System
Dual SIM card support
Multiple failover options
Advanced system log for performance monitoring
Cost effective solution



Management



Web application (HTTP based)
Command Line Interface on serial console, telnet and SSH
GWR connection wizard
Remote management and monitoring software
SMS control
Detailed system log
Default reset
Firmware upload
Partial or full configuration Export/Import
Radius Authentication
Display settings
Timed actions





Network



DHCP server
DHCP client
RIP
VRRP
Port forwarding
DMZ support
SNMPv1,2c
DynDNS
NTP
Firewall (NAT, PAT, IP filtering, MAC filtering)
Serial-to-IP
ModbusRTU-to-ModbusTCP
Radius
PPPoE client, static routes with metric



VPN



GRE
GRE Keepalive
IPsec tunnel client/server with main and aggressive mode, certificate management for tunnels (CA certificate, private certificate, private key), preshared key files
Data integrity
- HMAC-MD5, SHA-1
- Authentication and key management
IKE, manual keys
IKE features
- Perfect Forward Secrecy
- Auth-Method PSK
- Identify IP address
- DPD for constant connection
- Automatic NAT-T behind NAT
- Initiator and responder
IPSec tunnel failover
OpenVPN
PPTP
L2TPv3

High Speed cellular router series GWR has been specially designed for those applications where high speed data transfers (up to 100 Mbps) over Cellular network are required. New GWR Router Series enables versatile connectivity owing to mobile link, ADSL and Wi-Fi options and connection with the master router. Complete series is based on reliable and high performance hardware platform using ARM Cortex-A8 microprocessor. Secure data transfer via mobile networks is provided through VPN (IPsec, OpenVPN and GRE).

The reliability of device is enhanced with multiple connectivity options. Take advantage of two SIM card slots for automatic switch to alternative provider in case of failure of the primary connection. Additionally, you can also choose WiFi and ADSL connectivity where the infrastructure on the field allows such connections.

You can choose the most appropriate one for you for sure, between numerous models of these routers: with 1 or 4 Ethernet ports and ADSL2+ port or 2 or 5 Ethernet ports (without ADSL2+) bundled with Wi-Fi. GWR High Speed series is now improved with LCD display enabling user-friendly monitoring of router status such as: currently active SIM card, GSM provider, ports usage (WAN, LAN, Wi-Fi, ADSL), IP address, signal strength/quality and more. With a robust all-metal case and top quality components inside, durability of the product is guaranteed.



Key benefits



High speed data transfer
LCD display for convenient monitoring
1 or 4, or 2 or 5 Ethernet ports
ADSL2+ option with WiFi
Complete set of advanced features
User friendly web based configuration interface
Top rated CLI for IT professionals
Dedicated Remote Management and Monitoring System
Dual SIM card support
Multiple failover options
Advanced system log for performance monitoring
Cost effective solution



Management



Web application (HTTP based)
Command Line Interface on serial console, telnet and SSH
GWR connection wizard
Remote management and monitoring software
SMS control
Detailed system log
Default reset
Firmware upload
Partial or full configuration Export/Import
Radius Authentication
Display settings
Timed actions





Network



DHCP server
DHCP client
RIP
VRRP
Port forwarding
DMZ support
SNMPv1,2c
DynDNS
NTP
Firewall (NAT, PAT, IP filtering, MAC filtering)
Serial-to-IP
ModbusRTU-to-ModbusTCP
Radius
PPPoE client, static routes with metric



VPN



GRE
GRE Keepalive
IPsec tunnel client/server with main and aggressive mode, certificate management for tunnels (CA certificate, private certificate, private key), preshared key files
Data integrity
- HMAC-MD5, SHA-1
- Authentication and key management
IKE, manual keys
IKE features
- Perfect Forward Secrecy
- Auth-Method PSK
- Identify IP address
- DPD for constant connection
- Automatic NAT-T behind NAT
- Initiator and responder
IPSec tunnel failover
OpenVPN
PPTP
L2TPv3

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users up to 100 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Secure Boot Cryptographic integrity check of the each system boot process (available on device with special order code RUT955T073B0).
VPN
OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN
WireGuard WireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID range Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS RTU MASTER (RS232)
Supported baud rates From 300 to 115200
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Number of data bits From 5 to 8
Number of stop bits 1 or 2
Parity None, Even, Odd
Flow None, RTS/CTS, Xon/Xoff
Duplex Full duplex
MODBUS RTU MASTER (RS485)
Supported baud rates From 300 to 115200
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Number of data bits 8
Number of stop bits 1
Parity None, Even, Odd
Flow None, Xon/Xoff
Duplex Half duplex
MODBUS DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT
MQTT GATEWAY
MQTT gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation, RTU Master
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
IoT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones
SERIAL
RS232 DB9 connector, full RS232 (with RTS, CTS)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
INPUT/OUTPUT
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4 pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
Events SMS, EMAIL, RMS
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption < 2 W idle, < 7 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/Oʼs 2 x Inputs and 2 x Outputs on 10 pin industrial socket, 1 x Digital input and 1 x Digital output on 4 pin power connector (available from HW revision 1600)
Status LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 1 x 4 pin power connector
Input/output 1x 10 pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6 pin industrial socket
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 287 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, UKCA, CB
EMI IMMUNITY
Standards EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
ESD EN 61000-4-2:2009
Radiated Immunity EN 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
RF
Standards EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
SAFETY
Standards EN IEC 62311:2020
AS/NZS 60950.1:2015
IEC 62368-1:2018,
EN IEC 62368-1:2020+A11:2020
