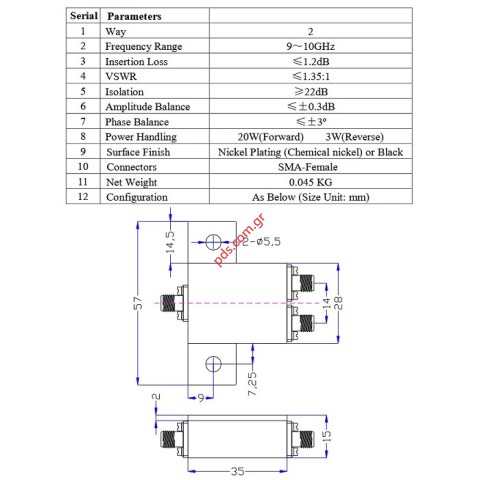

WAY 2
FREQUENCY RANGE 9~10GHZ
INSERTION LOSS <1.2dB
VSWR <1.35:1
ISOLATION >22dB
AMPLITUDE BALANCE <+-0.3dB
PHASE BALANCE <+-3
POWER HANDLING 20W (FORWARD) - 3W (REVERSE)
SURFACE FINISH - NICKEL PLATING (CHEMICAL NICKEL) OR BLACK
CONNECTORS - SMA -FEMALE
NET WEIGHT - 0,045KG
SIZE - 35X28X15mm
