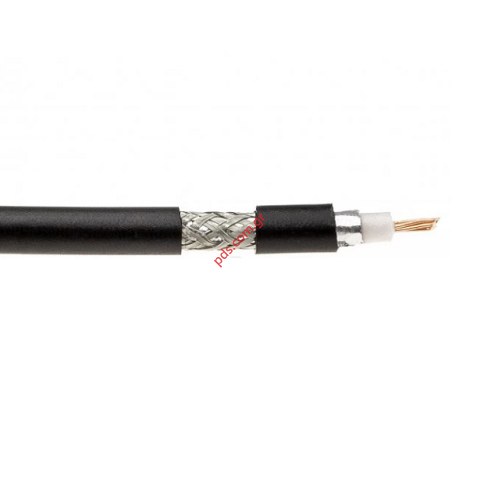

H155 PE is a low-loss 50 ohm coaxial cable, a low loss cable with low transmission loss.
The H155 PE cable is pre-assembled with
N plug to SMA plug
Cable length 2 m
Each cable is individually checked electrically.
The electrical data of the H155 PE are identical to H155 PVC and H155 FRNC or H155 LSNH. The only differences are in the material of the outer jacket.
All H155 cable types are UV resistant.
A PE jacket is also resistant to most oils, alkalis and acids. FRNC or LSNH still offers protection and security in the event of a fire.
Complete technical specifications for download can be found in the individual data sheets of the H155 cables at the end of this article description.
Examples of use
Antenna cables, measuring cables, patch cables, test cables,
Connection cables, extension cables, and much more
2 cables are required for LTE MIMO.
H155 can be used up to 6 GHz.
Application examples H155 PE
Amateur radio (HAM)
Radio frequency identification (RFID)
Mobile radio (GSM, LTE, MIMO and UMTS)
Navigation (GPS)
Telephony (DECT)
Wireless radio network technology (WLAN)
General electronics, DC to 6 GHz
Nominal insertion loss for 2m H155
5 MHz
0,05 dB
50 MHz
0,14 dB
100 MHz
0,18 dB
230 MHz
0,27 dB
400 MHz
0,36 dB
800 MHz
0,52 dB
862 MHz
0,55 dB
1000 MHz
0,59 dB
1350 MHz
0,70 dB
1750 MHz
0,81 dB
2150 MHz
0,92 dB
2400 MHz
0,98 dB
3000 MHz
1,13 dB
3600 MHz
1,26 dB
4200 MHz
1,38 dB
4800 MHz
1,50 dB
5400 MHz
1,62 dB
6000 MHz
1,73 dB
