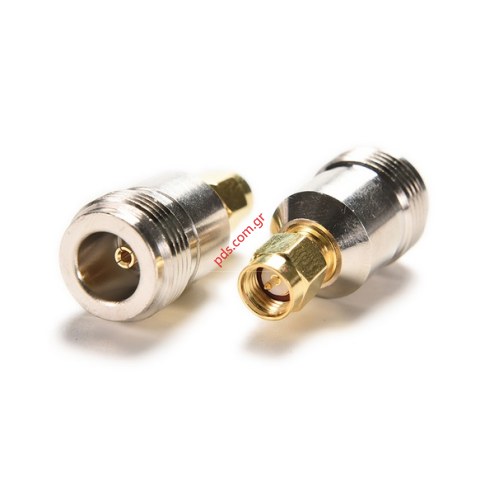

Antenna adaptor N type female SMA male straight RF coax connector 50Ω.
Description:
The connectors are akind of low to medium power connectors,with screw coupling mechanism,are widely used connect of the RF coaxial-cable in electronic equipment and instruments,and can be interchange able with the same-type connectors of abroad.Characteristic impedance 50Ω.
Impedance 50 Ω
Operating Frequency 11GHz
Voltage Rating 500 V
VSWR 1.3 Max
Operating Temperature -65°C to +165°C
Length 31 mm
Adapter Type SMA Plug to SMA Socket
Adapter Type A SMA
Adapter Type B Type N T
Gender A Male
Gender B Female
Body Orientation Straight
Contact Plating Gold
Body Plating Nickel
Contact Material Brass
Insulation Material PTFE
Body Material Brass
Shell Material Brass
Washer Material Brass
Centre contact Material Brass
Shell Finish Nickel 100μ” min
Body Finish Nickel 100μ” min
Washer Finish Nickel
Centre Contact Finish Gold 5
Application Test and measurement, Communication systems,
GPS equipment, Antenna
