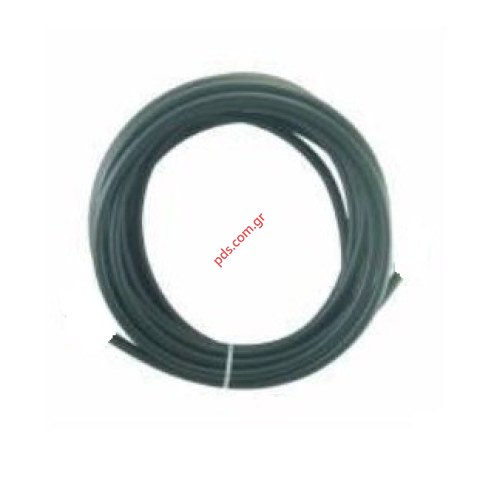

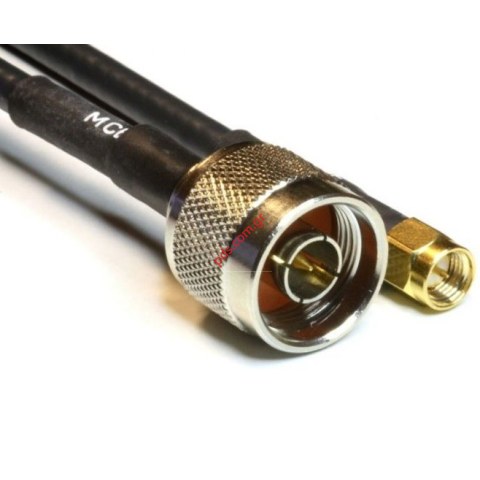

Cable low loss GSM, Connectores

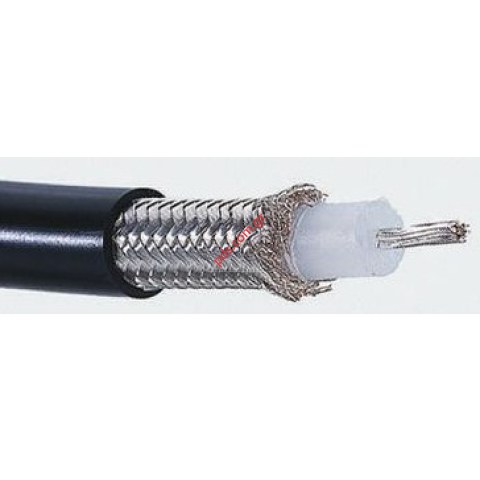

Coaxial RF Cable PVC Sheath RG214U

This is a SMA Female to SMA Female Straight Connector/Adapter. Its Impedance 50 Ohm and ROHS Complaint. The female signal pin present in this connector correctly mate with the original SMA type antenna and ensures reliable functioning.
This is SMA Coupler Connector,Not F Type Connector,please check the size before order it
You Can Use Small Wrench to Tighten this SMA female connector with the Middle Part,The connector housing and pin in center are made of pure brass to ensure a lower VSWR for higher transmission efficiency
These RF antenna adapters are really handy, especially if you have Baofeng radios as they have a male SMA on the radios and a female SMA on the antennas
Impedance：50Ω, VSWR≤1.1, This SMA WiFi Adapter is NOT fit for TV,Check F male connector in our store if you need connector for TV,so please check the size before order it.
Package Content : 2 x SMA Female to Female Coax Adapter

Adapter

Face 1 : RP-SMA
Face 2 : RP-SMA

Specification

Transition type coupler
Spatial orientation straight
RPSMA male
RPSMA female

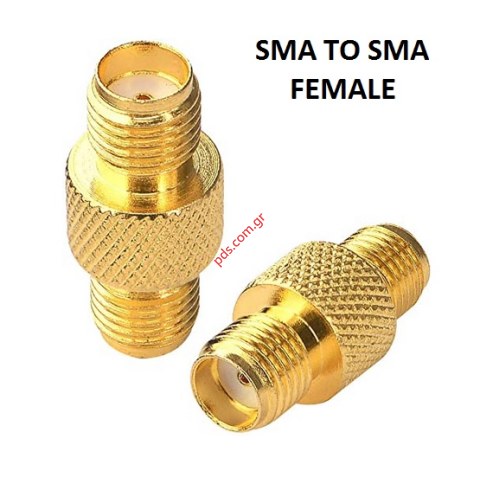

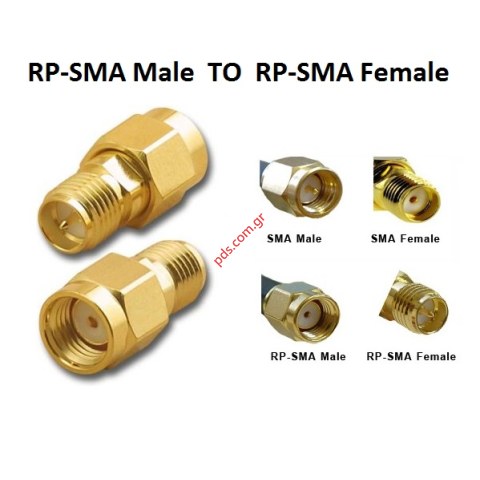

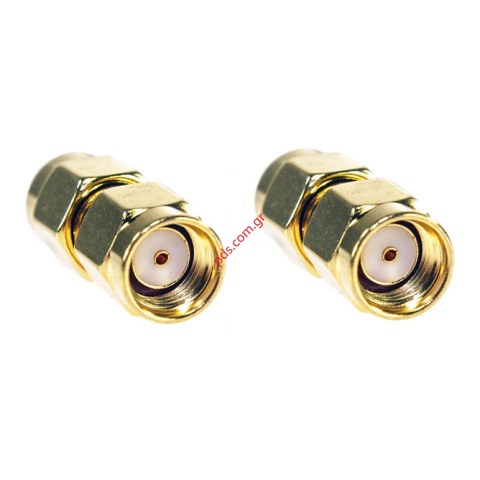

Adapter RP-SMA Female to RP-SMA Female (Coupler)

Transition type coupler
Spatial orientation straight
SMA male
RPSMA female

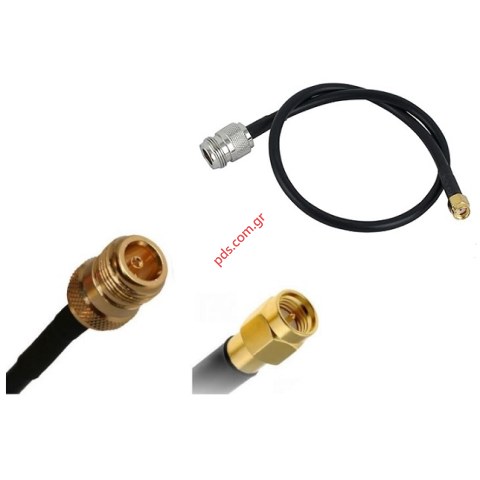

Coax slim cable LMR200 NF (N FEMALE) to SMA M (MALE) 0.20m.
Primarily used to connect our larger 915MHz GSM antenna to SMA connections but can be used on other devices up to 3GHz. Cable type is RG316.
RG316 Cable can be used in direct burial, radio frequency and telecommunications applications. Often used for the transmission of radio frequency signals, RG316 cable can be used in wireless communication, broadcast and military equipment. In addition, RG316 cable can be used for high frequency interconnections between PCB in telecommunications equipment. RG316 is also a good choice for applications like these which require good high temperature performance, high temperature stability, and superior phase stability, or for applications in demanding environments or with minimal installation space.

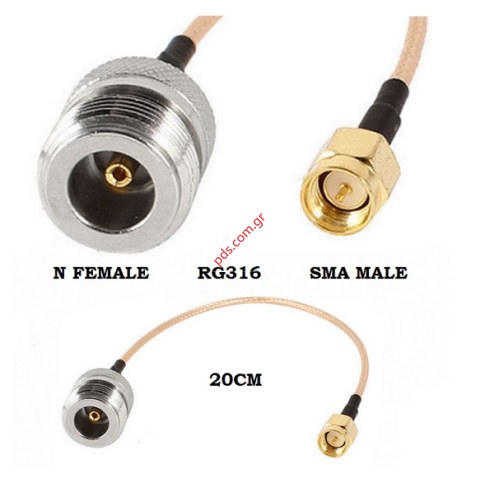

This N-Female to SMA-Male pigtail connector joins components of a cell phone signal booster system.

High quality, low-loss connector
Weather resistant
Commercial grade

Application:

Wireless LAN Devices
Wi-Fi Radios
External Antenna Applications
Wireless OEM Applications
Wireless Infrastructure

This cable (1m) can be used either to lengthen the cable from the external antenna to the transponder module, or used in conjunction with a signal splitter to connect to multiple indoor coverage antennas. The coaxial cable is preformed to have links N-Male (male) coax at both ends NOT INCLUDED.

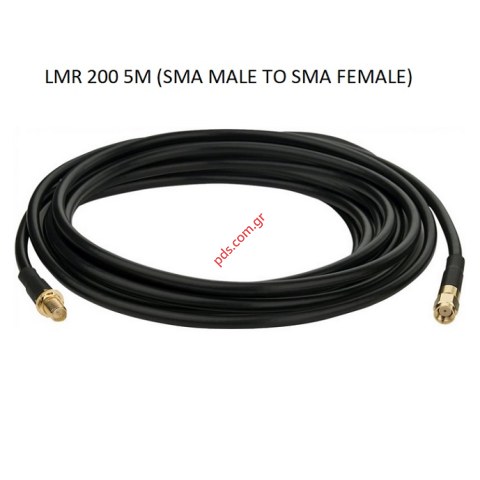

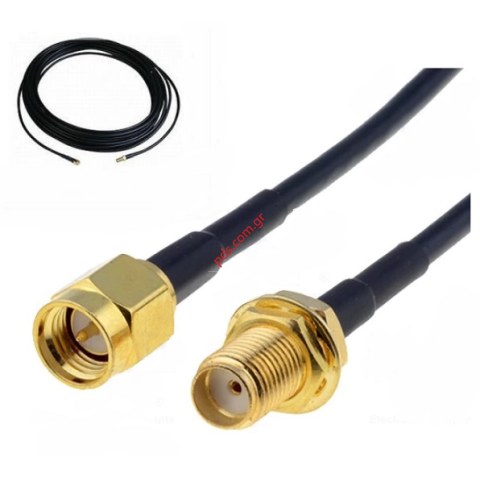

Cable set SMA Male To SMA Female RG174 WIFI Antenna Extension Cable Wireless Router Coax Jumper Pigtail SMA M/F RF Coaxial Cord.

Specifications:
NameSMA RF Coaxial Cable Assembly
Connector Type ASMA Male Plug
Connector Type BSMA Female Bulkhead
Connector PlatingGold Plated
RF Cable TypeRG174 or Request
Impedance50 Ohm
Packing PP Bag
Applications GSM system,GPS navigation system,Wireless communication system,Antennas.Car radio, Test equipment Microwave components,Data transmission,LAN system,Satellite transmission,Aviation equipment,etc.

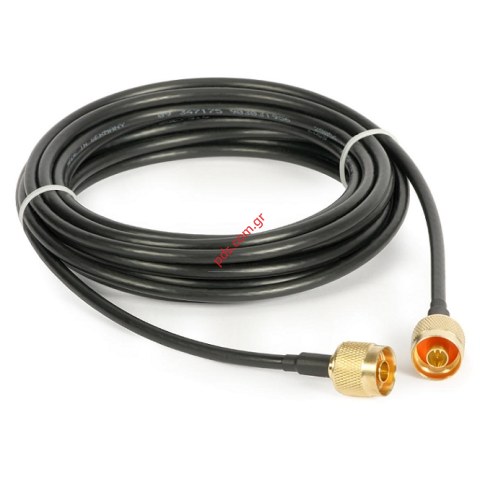

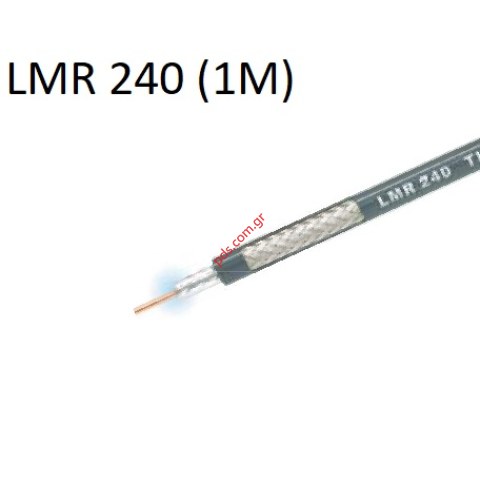

Koaxialkabel
Hersteller:
Kabeltyp: M 240
Wellenwiderstand: 50 Ohm,
Frequenzbereich bis 6 GHz,
Innenleiter: Kupferdraht,
Innenleiterdurchmesser: 1,42 mm,
Dielektrikum: PE Schaum,
Dielektrikumdurchmesser: 3,81 mm,
Außenleiter 1: Aluminium Band,
Außenleiterdurchmesser 1: 3,94 mm,
Außenleiter 2: Kupfergeflecht verzinnt,
Außenleiterdurchmesser 2: 4,52mm,
Mantel: PE,
Außendurchmesser: 6,10mm,
Farbe: schwarz,
Temperaturbereich: -40°C bis +85°C,
Dämpfung bei 2 GHz: 0,38 dB/m.,

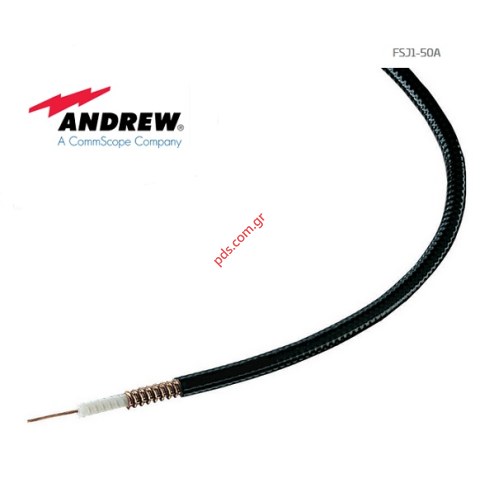

Specifications
Product Classification
Product Type Coaxial wireless cable
Product Brand HELIAX® | SureFlex®
Product Series FSJ1-50A | MLOC
General Specifications
Flexibility Superflexible
Jacket Color Black
Performance Note Attenuation values typical, guaranteed within 5%
Dimensions
Diameter Over Dielectric 4.826 mm | 0.19 in
Diameter Over Jacket 7.366 mm | 0.29 in
Inner Conductor OD 1.905 mm | 0.075 in
Outer Conductor OD 6.35 mm | 0.25 in
Nominal Size 1/4 in
Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 79.4 pF/m | 24.201 pF/ft
dc Resistance, Inner Conductor 9.843 ohms/km | 3 ohms/kft
dc Resistance, Outer Conductor 7.216 ohms/km | 2.199 ohms/kft
dc Test Voltage 1600 V
Inductance 0.2 µH/m | 0.061 µH/ft
Insulation Resistance 100000 MOhms-km
Jacket Spark Test Voltage (rms) 5000 V
Operating Frequency Band 1 – 18000 MHz
Peak Power 6.4 kW
Velocity 82 %

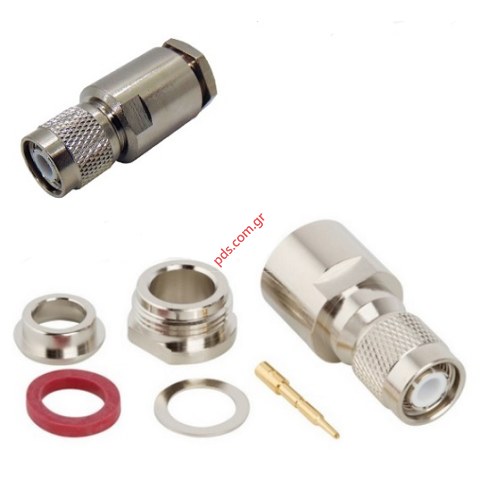

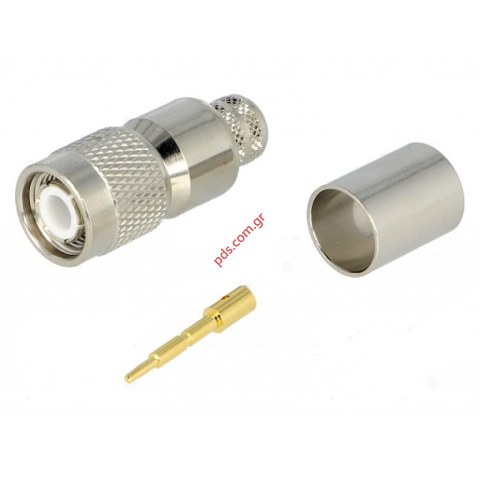

RF TNC Male for LMR400 Clamp (Βιδωτός) Solder 1 PCS
For Cable RG213U (10.5MM)
PIN: QSN6.5-0.1 Gold plated

Cable RF Coaxial Feeder HCAAY-50-12 HGX 1/2 inch 50ΩΜ 1m Low Loss Coaxial RF Cable Black

Product description DeLOCK RF adapter
Electric wire RF Adapters
Left connection points 1 x RP-SMA - male
Right connection points 1 x SMA - female
Additional characteristics Gold plated connectors
cable type RF Adapters
impedance 50 ohms
Additional characteristics Gold plated connectors
Left connection points 1 x RP-SMA - male
Right connection points 1 x SMA - female

Connector Body Nickel Plated
Center Pin Gold Plated
Dielectric Teflon
Impedance 50 Ohm
Frequency Max Rate 6 GHz
Insertion Loss: <2.5dB

Features:

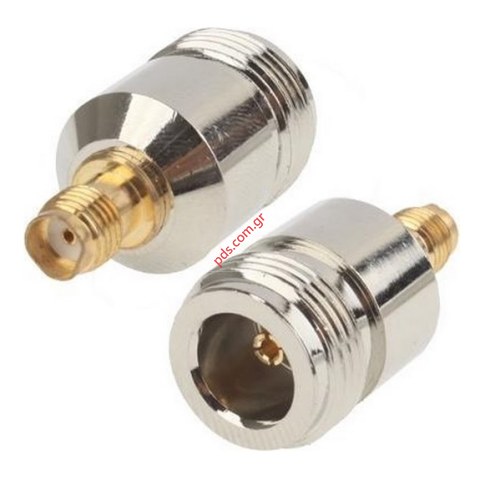

RF Adapter,SMA,Female,N Type,Female,Straight;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;


Appliance:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Why choose this connector?

• Compression design with double seal that ensures better protection against infiltration of water, humidity and condensation.

• Easy installation and welding instructions included in the package (no braid soldering needed).

• Dramatic suppression of the background noise, improvement of screening attenuation and insertion losses.

• The surfaces are treated with a special alloy called Smart3-Alloy®: it is corrosion-resistant and hypoallergenic.

• The new designed pin prevents excess of tin and the consequent heating, which damages the dielectric causing an uncontrollable alteration of the electrical properties of your cable (differently from standard PL259 which is exposed to strong thermical stress).


Product dimensions: 2,1cm x 3,7cm

Wrench size: 11mm & 13mm

Connectors are sold individually, image is for illustrative purpose.

Package Contents:
• 1x SMA antenna cable

Product specifications:
Cable model: Round
Cable length: 5.00 m
Cable sheath material: PVC
Cable sheath size: 2.8 mm
Cable type: SMA
Color: Black
Conductor diameter: 7 x 0.16 mm
Conductor material: Pure copper
Connector A: SMA male
Connector B: SMA female
Connector Type - A Side: Straight
Connector Type - B-Side: Straight
Connector material: Metal
Connector layout: Gold-plated
Impedance: 50 Ohms
Packaging type: Plastic bag
Security: Simple protection

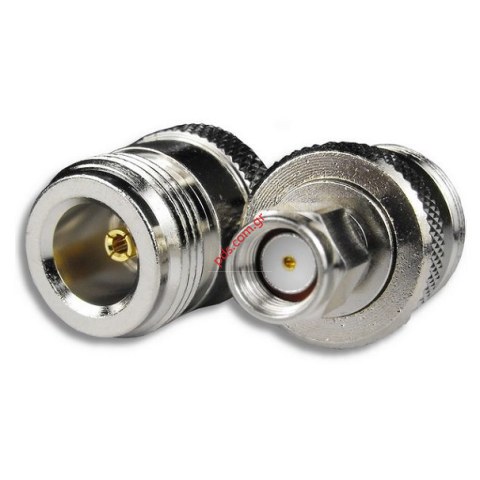

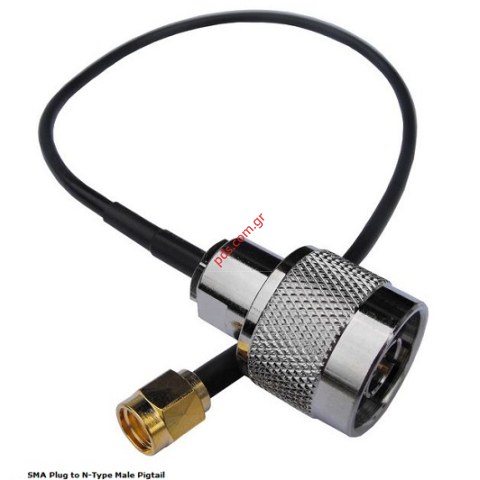

Cable adaptor RP-SMA Plug to N-Type Male Pigtail

Antenna adaptor N type female SMA male straight RF coax connector 50Ω.
Description:
The connectors are akind of low to medium power connectors,with screw coupling mechanism,are widely used connect of the RF coaxial-cable in electronic equipment and instruments,and can be interchange able with the same-type connectors of abroad.Characteristic impedance 50Ω.

Impedance 50 Ω
Operating Frequency 11GHz
Voltage Rating 500 V
VSWR 1.3 Max
Operating Temperature -65°C to +165°C
Length 31 mm

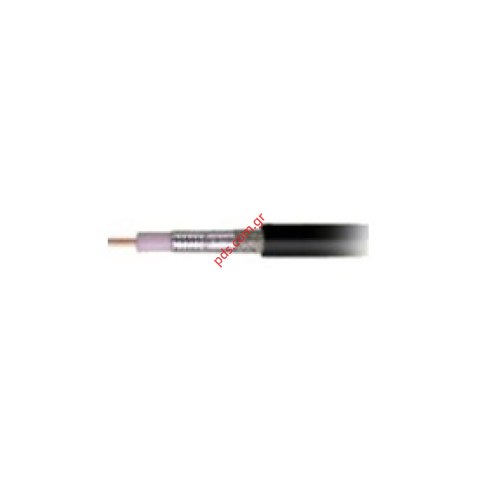

The low-loss coaxial cable, is prefabricated to have links N-Male (male) at both ends. This cable is ideal in areas where there is good external signal. This cable (10m) can be used either to lengthen the cable from the external antenna to the transponder unit or used in conjunction with a signal splitter for connecting multiple antennas indoor coverage. The coaxial cable is prefab has links to N-Male (male) coax on both ends. Low-loss (approx 6dB per 30m)
versatile
For all products transponder
Antennas for indoor and outdoor

Product Specification
Contact Material Brass
Connectivity Type Female
Maximum Frequency DC-6 Ghz
Usage/Application RF
Mounting Type Cable Mount
Configuration Coaxial connector
Pin Type Male RF Pin
Impedance 50 ohm
Color Silver

Product Description
SPECIFICATIONS:
Characteristic Impedance: 50 ohm
Frequency Range: DC-6 Ghz
VSWR: ≤1.15@DC-3GHz
Dielectric Withstanding Voltage: ≥1000V RMS,50Hz,at sea level
Dielectric Resistance: ≥5000MΩ
Contact Resistance Center Contact: ≤1mΩ
Outer Contact: ≤0.25mΩ
Durability Mating Cycles: ≥500
Body Material: Brass
Insulator: PTFE(Teflon)
Center conductor: Brass
Operating Temperature Range: -40 85

Adaptor FME-N connector

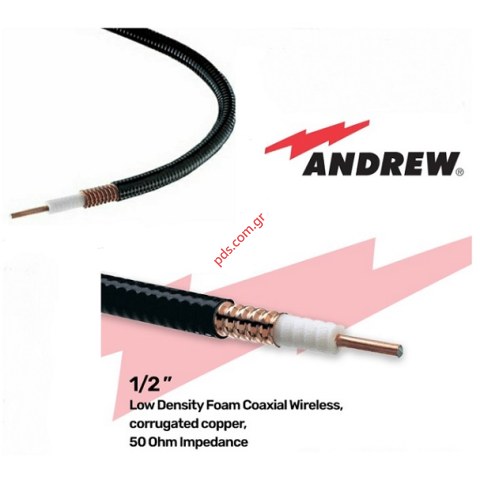

The LDF4-50A is a coaxial cable designed and manufactured marketed under the HELIAX brand.

This cable has a 1/2 inch diameter and is made with a low-density foam dielectric material that helps to reduce signal loss and provide excellent performance over a wide frequency range. It also features a corrugated copper outer conductor and a solid copper inner conductor, which provide excellent shielding and signal transmission properties.

The LDF4-50A cable is designed for use in a variety of high-power applications where signal integrity is critical, such as in wireless communication systems, radio and television broadcasting, and satellite communication. It can handle frequencies of up to 2.5 GHz, and has a high power rating, making it ideal for use in high-power applications.

The LDF4-50A coaxial cable is a high-quality and reliable cable that offers excellent signal transmission and shielding properties. Its low-loss, high-power design makes it a popular choice for use in a wide range of applications where high-quality signal transmission is essential.

Construction Materials

Jacket Material: PE
Outer Conductor Material: Corrugated copper
Dielectric Material: Foam PE
Flexibility; Standard
Inner Conductor Material: Copperclad Aluminum Wire
Jacket Color: Black

Dimensions
Nominal Size: 1/2 in
Cable Weight: 0.15 lb/ft | 0.22 kg/m
Diameter Over Dielectric: 12.954 mm | 0.510 in
Diameter Over Jacket:15.875 mm | 0.625 in
Inner Conductor OD: 4.8260 mm | 0.1900 in
Outer Conductor OD: 13.970 mm | 0.550 in

Electrical Specifications
Cable Impedance: 50 ohm ±1 ohm
Capacitance: 23.1 pF/ft | 75.8 pF/m
dc Resistance, Inner Conductor 0.450 ohms/kft | 1.480 ohms/km
dc Resistance, Outer Conductor 0.580 ohms/kft | 1.903 ohms/km
dc Test Voltage: 4000 V
Inductance: 0.190 μH/m | 0.058 μH/ft
Insulation Resistance: 100000 MOhm
Jacket Spark Test Voltage (rms): 8000 V
Operating Frequency Band: 1 – 8800 MHz
Peak Power: 40.0 kW
Pulse Reflection: 0.5%
Velocity: 88%

Environmental Specifications
Installation Temperature: 40
°C to +60 °C (40
°F to +140 °F)

All HELIAX® coaxial cables are jacketed for direct burial or for corrosive environmental conditions.
Standard jacketing material is weather-resistant polyethylene suitable for use in extrem
Made in the USA

Product Name : N-Female to RP-SMAFemaleAdapter;Connector Type : N-Female to RP-SMAFemaleAdapter
Cable Type : LMR200
Resistance : 50Ohm;Length(Approx) : 40cm / 16"
Insertion Loss : 1.0dB(Max.);VSWR : 0-3GHz(1.5 Max.)
Material : Plastic, Metal;Color : Black, Gold Tone, Silver Tone
Net Weight : 46g;Package Content : 1xN-Female to RP-SMAFemaleAdapter

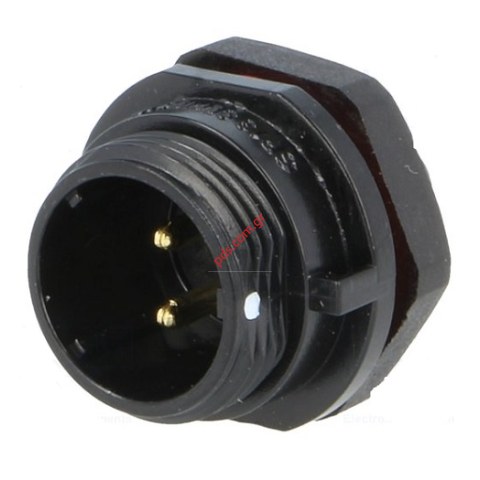

Specifications
Manufacturer WEIPU
Connector type circular
Connector socket
Connector type male
Connector series SP13
Number of pins 2
IP rating IP68
Rated current 13A
Electrical mounting soldering
Mechanical mounting for panel mounting
Rated voltage 250V
Wire cross section 2mm2
Locking system threaded joint, external thread
Operating temperature 40...85°C

Specifications
Manufacturer WEIPU
Connector type circular
Connector plug
Connector type female
Connector series SP13
Number of pins 2
IP rating IP68
Cable external diameter 4...6.5mm
Rated current 13A
Electrical mounting soldering
Mechanical mounting for cable
Rated voltage 250V
Wire cross section 2mm2
Locking system threaded joint, external thread
Operating temperature 40...85°C

Coax slim cable from LMR200 NF to SMA M 100cm
Primarily used to connect our larger 915MHz GSM antenna to SMA connections but can be used on other devices up to 3GHz. Cable type is RG316.

Features:

Connector A: N Female
Connector B: SMA Male
Cable type: N-SMA RG316 Pigtail Cable
Impedance: 50 ohm
Material: Copper
Cable length: 1m
Color: Rose gold & silver & gold
Quantity: 1 Pc

Package Includes:

1 x N-SMA RG316 Pigtail Cable (without retail package)

Specifications
Manufacturer CONEC
Connector plug

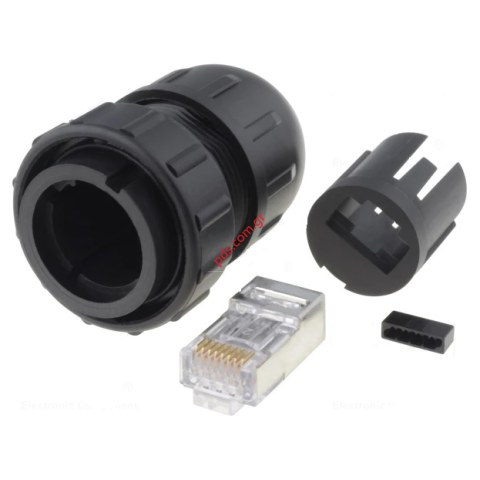

Connector type RJ45
Number of pins 8
Ethernet category Cat 5e
Connector variant shielded
Operating temperature 40...85°C
Type of pin configuration 8p8c
Locking system bayonet
Wire size 24AWG
Sealing IP67
Electrical mounting IDC
Mechanical mounting for cable
Connectors application wire, strand
Body material plastic

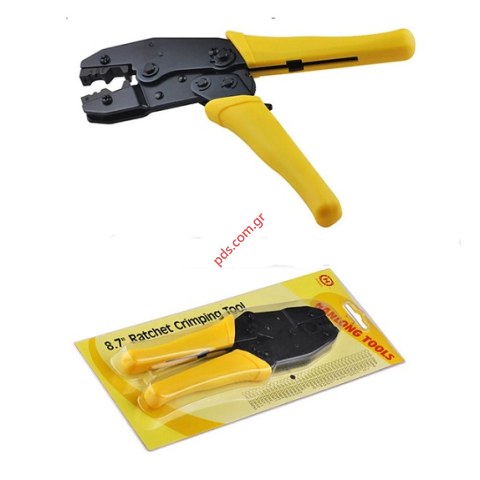

We offer a cable making service or you can buy the tools to make the cables yourself. If you have a lot of cables to make, it is certainly more cost effective for you to make your own cables, we have a range of tools and cable to suit most needs.

Please note: We supply a number of connectors that are gold plated. Please note that if it is not mentioned in the description, then it is not gold plated.

Connectors for HDF/LMR®* 200 (Cable loss of 0.5dB/m at 2.4 GHz)
Connectors for HDF/LMR®* 400 (Cable loss of 0.2dB/m at 2.4 GHz)

All of our connectors have VSWR less than or equal to 1.3 (at both 2.4 and 5.8 GHz frequencies) which equates to a Transmission Loss of about 0.15dB at 5GHz or 0.1dB at 2.4GHz. They are generally suitable for wireless operation in the range 0-10GHz.

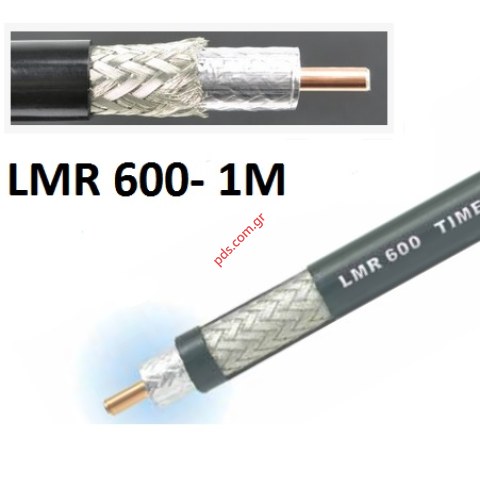

High quality coaxial cable LMR600 with lowloss properties. The sheath is made of PE and is fully suitable for outdoor use. The manufacturer gives a 20 year guarantee on the UV resistance of its LMR cable.
Transmission power with 3G or WLAN up to 600 watts suitable.

Application: radio application, broadband communication, automotive sector, components in wireless communication systems

LMR 600: (Sheath colour: black) 50Ω,
Temperature range -40°C to +85°C

LMR-600 (TIMES MW) COAXIAL CABLE MATERIAL DIAMETER
INNER CONDUCTOR AlCu solid Ø 4.47 mm
DIELECTRIC PE fm Ø 11.56 mm
CABLE SCREEN Aluminium foil , Tinned copper braiding Ø 12.45 mm
CABLE SHEATH PE, black Ø 14.99 mm

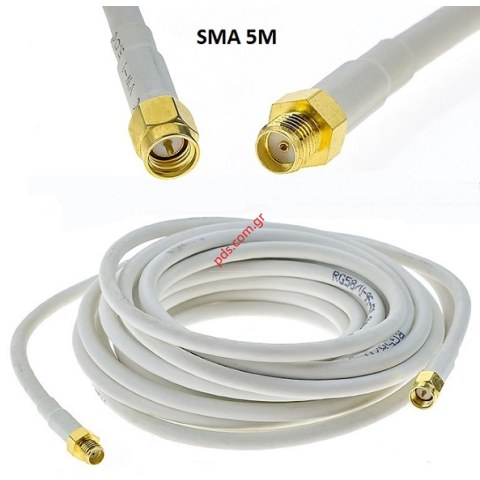

Cable RF SMA to SMA male 5m white bulk

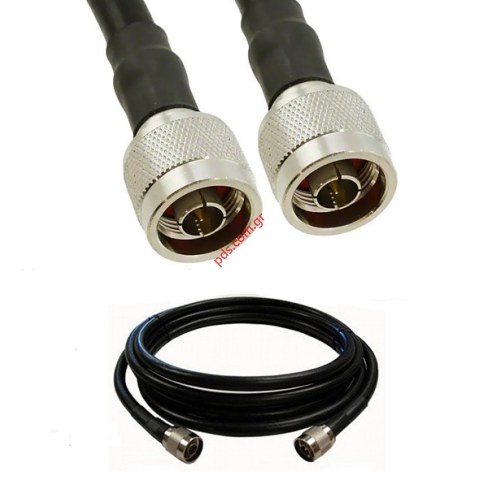

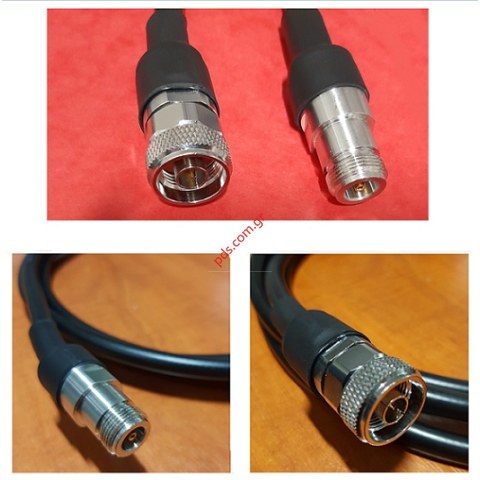

Coaxial RF cable CNT 400/RSC 400 Cable N-male N-male,1m

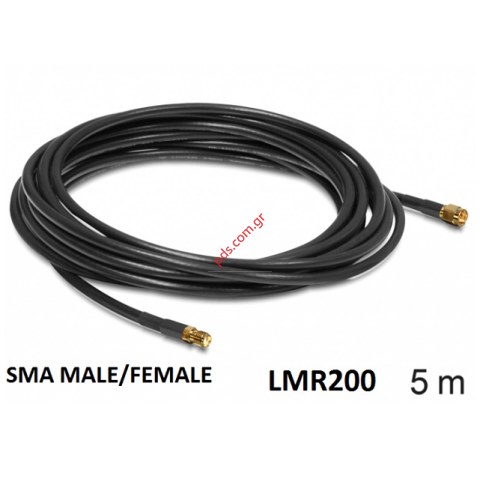

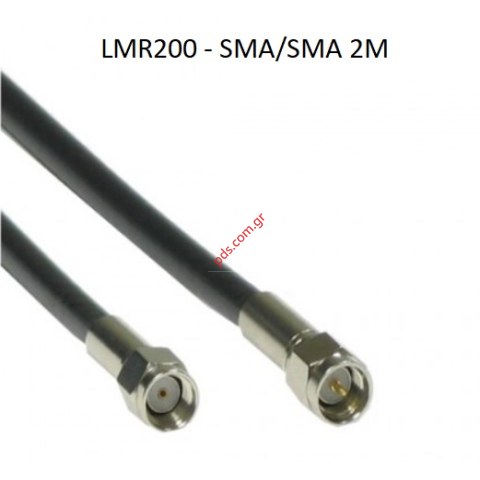

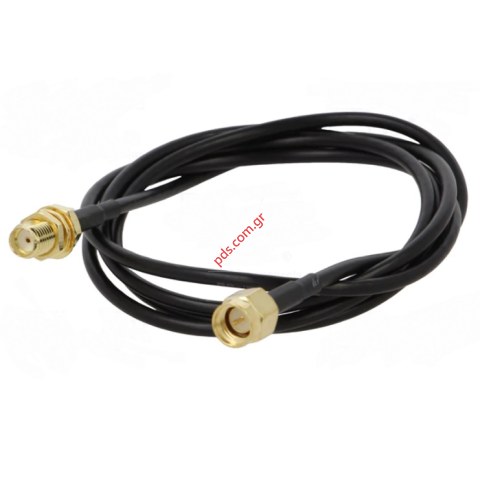

Cable LOW LOSS CABLE (2M) set connectors SMA MALE/SMA FEMALE

Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 0,2m is terminated with crimped connectors, N female on one side and SMA male on the other.

Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz and 5 GHz installations outdoors, including harsh climatic conditions to connect active and passive wireless components ( antenna / radio) or to extend an existing cable.
Wireless features
Wireless frequency:0 up to 6 GHz
Connectors and Interfaces
Connectors:N female - SMA male, SMA male - N female
Physical characteristics
Cable type:RF240
Maximum loss - 5GHz [dB]:1,2
Maximum loss - 2.4GHz [dB]:0,7
Length [m]:0,2

Specifications
Manufacturer CONEC
Connector socket
Connector type RJ45
Number of pins 8
Ethernet category Cat 5e
Operating temperature 40...85°C
Type of pin configuration 8p8c
Locking system bayonet
Sealing IP67
Mechanical mounting for panel mounting, front side nut, rear side nut, screwed
Body material plastic

Cable/adapter structure:

RJ45 socket
both sides

Cable M 200 LOW LOSS CABLE (5M) set connectors SMA MALE/SMA FEMALE

H155 PE is a low-loss 50 ohm coaxial cable, a low loss cable with low transmission loss.

The H155 PE cable is pre-assembled with
N plug to SMA plug
Cable length 2 m
Each cable is individually checked electrically.

The electrical data of the H155 PE are identical to H155 PVC and H155 FRNC or H155 LSNH. The only differences are in the material of the outer jacket.
All H155 cable types are UV resistant.
A PE jacket is also resistant to most oils, alkalis and acids. FRNC or LSNH still offers protection and security in the event of a fire.

Complete technical specifications for download can be found in the individual data sheets of the H155 cables at the end of this article description.

Examples of use

Antenna cables, measuring cables, patch cables, test cables,
Connection cables, extension cables, and much more
2 cables are required for LTE MIMO.
H155 can be used up to 6 GHz.
Application examples H155 PE

Amateur radio (HAM)
Radio frequency identification (RFID)
Mobile radio (GSM, LTE, MIMO and UMTS)
Navigation (GPS)
Telephony (DECT)
Wireless radio network technology (WLAN)
General electronics, DC to 6 GHz


Nominal insertion loss for 2m H155
5 MHz

0,05 dB
50 MHz

0,14 dB
100 MHz

0,18 dB
230 MHz

0,27 dB
400 MHz

0,36 dB
800 MHz

0,52 dB
862 MHz

0,55 dB
1000 MHz

0,59 dB
1350 MHz

0,70 dB
1750 MHz

0,81 dB
2150 MHz

0,92 dB
2400 MHz

0,98 dB
3000 MHz

1,13 dB
3600 MHz

1,26 dB
4200 MHz

1,38 dB
4800 MHz

1,50 dB
5400 MHz

1,62 dB
6000 MHz

1,73 dB

RF TNC FEMale for LMR400, B9913, B9914 1 PCS

Excellent quality low-loss CFD-200, LMR-195 or H155PE SMA male - SMA female cable. CFD-200, LMR-195 and H155PE are almost similar in technical aspects (check below). 50 Ohm. For even lower signal loss, please check LMR-400 cable beside.
Cable including SMA male - SMA female, CFD-200 / H155PE / SH-200 / LMR-195, super low-loss, 6mm, 10m, black.
Loss in frequency 450hz/0.23dB/m,, 900mh/0.33dB/m, 1880mz/0.47dB/m, 2100mz/0.50dB/m, 2600mz/0.57dB/m.
Diameter 5 mm

Cable low loss 20 meter 5D - 2V (200-300MHZ) with connectores

Connector Heliax 1/2 inch N-TYPE Male Corugated Bulk

Extension Cable Tp-link 6 Mtr Antenna Tl-ant24ec6n


TP-Link TL-ANT24EC6N Extension Cable for Low Loss Antenna, 2.4GHz, 6m KMS-400, Type-N Male to Female connectors

• Quick and easy installation in any suitable wireless environment
• Its 6 meters in length allow you to place the antenna in the optimal position to maximize the performance of your wireless network
• Rugged weather resistant design, compatible with most outdoor solutions
• N male to female connector, works with N type antennas

TP-Link TL-ANT24EC6N
6 meter low loss antenna extension cable
What can you do if the wireless signal is too weak to connect to an access point in another building and you need to locate the antenna higher or further away for better reception?

The answer is to use an antenna extension cable. It is no longer necessary to move the access point or wireless router (which can sometimes be difficult) to another location. Thanks to the low signal loss offered by the cable, you have greater flexibility in locating it at the sweet spot and thus maximizing the performance of your wireless network.
Characteristics:
• KMS-400 (LMR-400) 6 meter low loss cable
• N male to female connector
Features high performance low loss KMS-400 cable suitable for the same use as LMR®-400[1]
Weather resistant design, applicable in most outdoor solutions
N Male to Female connector, works with N type antennas

LMR®-400 is made by Times Microwave. LMR® is a registered trademark of Times Microwave. Times Microwave is not affiliated with TP-LINK and does not endorse TP-LINK products.

Construction :

Inner conductor Bare copper/Copper clad steel Φ1.8 mm
Dielectric Foam /Solid PE Φ5.0±0.02 mm
Shield Bonded aluminium foil Φ5.2 mm
Outer conductor Tinned copper braid Φ5.7 mm
Shield coverage 85%
Sheath PVC/PE Φ7.5 mm







Electrical & Mechanical Characteristics :

Impedance 50±3 Ohm
Nominal capacitance 82 pF/m
Velocity of propagation 82%
Insulation resistance >5000 Mohm.Km
Inner conductor resistance 6.8(10.5) Ohm/Km
Outer conductor resistance 14.1 Ohm/Km
Operating temperature range -40°C - +85 °C
Min.bending radius 38 mm

Special low loss cable M 400 (5m)

Series Low Loss Cable with N-Female (N Jack) to TNC Male (TNC Plug) Connectors

Specifications
Device Type Coaxial Cable
Color Black
Electrical Specification
Attenuation @600 MHz ~ < 0.32 dB
Attenuation @1900 MHz ~ < 0.58 dB
Attenuation @2600 MHz ~ < 0.69 dB
Attenuation @3700 MHz ~ < 0.84 dB
Attenuation @6 GHz ~ < 1.1 dB
Mechanical Specification
Dimensions (Inches) 0.405 Dia x 120 Length
Weight 2 lb
Connector 1 N-Female
Connector 2 TNC-Male
Connector Gender Female-to-Male
Cable Type 400-Series

The COAXSMA-L is an LMR195 coaxial cable fitted with a Type N male connector on one end and an SMA connector on the other end. The cable has a UV-resistant polyethylene jacket, which with proper installation and care, is designed for 20 years of outdoor use.

Superbat Yellow Crimper Crimping Tool for Coaxial Cable RG8 RG11 RG213 LMR400 RG316 RG174 SMA N MCX - 336K


8.7'' professional Ratchet type Crimp Tool - 336K

8.7'' professional Ratchet type Crimp Tool with pressure adjustment for actuation force and dies inter changeable mechanism, and a hex die with dimensions:

Capable of crimping a wide range of connectors...
Suitable for SMA, SMB, SMC, TNC, N-Type, MCX, MMCX and more...

Common Coaxial Cable types...
Capable of crimping RG8 RG11 RG213 RG214 LMR400 RG316 RG174 and more...

3 Crimp Sizes in Die...
.100''(2.54mm), .128''(3.25mm), .429''(10.90mm)

Crimper Tool For the following types of coax cable:
LMR-195 / LOW-195 / RG8X / LMR-240 / LOW-240 / LMR-240-UF / RG8U / LMR-400-DB / LOW-400-DB / LMR-400 / LOW-400 / LMR-400-UF
RG58 / RG142 / RG213 / RG214 / RG400 / RG223

Extension Cable Tp-link 6 Mtr Antenna Tl-ant24ec12n


TP-Link TL-ANT24EC12N Extension Cable for Low Loss Antenna, 2.4GHz, 12m KMS-400, Type-N Male to Female connectors

• Quick and easy installation in any suitable wireless environment
• Its 6 meters in length allow you to place the antenna in the optimal position to maximize the performance of your wireless network
• Rugged weather resistant design, compatible with most outdoor solutions
• N male to female connector, works with N type antennas

TP-Link TL-ANT24EC12N
6 meter low loss antenna extension cable
What can you do if the wireless signal is too weak to connect to an access point in another building and you need to locate the antenna higher or further away for better reception?

The answer is to use an antenna extension cable. It is no longer necessary to move the access point or wireless router (which can sometimes be difficult) to another location. Thanks to the low signal loss offered by the cable, you have greater flexibility in locating it at the sweet spot and thus maximizing the performance of your wireless network.
Characteristics:
• KMS-400 (LMR-400) 12 meter low loss cable
• N male to female connector
Features high performance low loss KMS-400 cable suitable for the same use as LMR®-400[1]
Weather resistant design, applicable in most outdoor solutions
N Male to Female connector, works with N type antennas

Interface N Male

Body Style Straight

Mounting Angle Straight

Connector Impedance 50 ohm

Operating Frequency Band 0 – 18000 MHz

Average Power 0.4 kW @ 900 MHz

Peak Power, maximum 6.40 kW

Shielding Effectiveness -110 dB


MFR: Andrew / Commscope

Series Low Loss Cable with N-Female (N Jack) to TNC Male (TNC Plug) Connectors

Specifications
Device Type Coaxial Cable
Color Black
Electrical Specification
Attenuation @600 MHz ~ < 0.32 dB
Attenuation @1900 MHz ~ < 0.58 dB
Attenuation @2600 MHz ~ < 0.69 dB
Attenuation @3700 MHz ~ < 0.84 dB
Attenuation @6 GHz ~ < 1.1 dB
Mechanical Specification
Dimensions (Inches) 0.405 Dia x 120 Length
Weight 2 lb
Connector 1 N-Female
Connector 2 TNC-Male
Connector Gender Female-to-Male
Cable Type 400-Series

Very good quality N male - SMA male cable. 50 Ohm. Loss 0.46dB/m @ 2GHz. Less with lower frequencies. For even lower signal loss, please check LMR-400 cable beside.
Loss of the most common 3G/4G/5G/GSM cables

Loss of the most common 3G/4G/5G/GSM cables in the frequencies. HDF cables are also sold as for example LMR, but the losses of same number cables are equal. (For example. HDF-200<=>LMR-200<=>CFD-200). You can also see cable diameter in the table below. In general the cables with smaller diameter are more flexible.

• Best attenuation tested in a 10,3mm coax , boosting 19dB/100m at 2400 Mhz.

• Suitable for direct burial and totally waterproof.

• Also perfect for outdoor use and weatherproof.

• Superlative robustness and resistance thanks to the PE tearproof sheath.

• Incredible lightness: 45% lighter than average 10,3mm cable.

• Super thick braid of 192 wires that leads to a dramatic reduction of the background noise.

Description Use this antenna cable, to connect components of the radio frequency technology
together. The RF cable is characterized by a low attenuation.



Specification

• Antenna extension cable
• Connectors: SMA jack > SMA plug
• Cable type: CFD200
• Attenuation: 2.4 GHz 0.55 dB per meter
5.7 GHz 0.86 dB per meter
• Diameter: 4.80 mm
• Color: black
• Cable length: 5 m

Koaxialkabel
Hersteller:
Kabeltyp:
Wellenwiderstand: 50 Ohm,
Frequenzbereich bis 6 GHz,
Innenleiter: Kupferdraht,
Innenleiterdurchmesser: 1,42 mm,
Dielektrikum: PE Schaum,
Dielektrikumdurchmesser: 3,81 mm,
Außenleiter 1: Aluminium Band,
Außenleiterdurchmesser 1: 3,94 mm,
Außenleiter 2: Kupfergeflecht verzinnt,
Außenleiterdurchmesser 2: 4,52mm,
Mantel: PE,
Außendurchmesser: 6,10mm,
Farbe: schwarz,
Temperaturbereich: -40°C bis +85°C,
Dämpfung bei 2 GHz: 0,38 dB/m.,

RF Feeder Cable 1/2"
Construction
Item Material Diameter(mm)
Inner Conductor Copper Clad Aluminum 4.8
Dielectric Foam PE 12.0
Shield Corrguated Copper Tube/ Aluminum Tube 13.9
Jacket PVC/PE/LSZH 15.7

Electrical Characteristics Attenuation @20ºC (dB/100M)
Impedance(Ω) 50 @150MHz 2.7
Velocity of Propagation(%) 88 @200MHz 3.1
Return Loss(dB) ≥20 @300MHz 3.83
Capacitance 76 @450MHz 4.75
Shielding Effectiveness(dB) ≥90 @800MHz 6.46
Operating Temperature(ºC) -30 to +70 @1000MHz 7.28

Cable low loss M 240 5M (N-TYPE/MALE-SMA/MALE) Black

The low-loss coaxial cable M 400, is prefabricated to have links N-Male (male) at both ends. This cable is ideal in areas where there is good external signal.

Low loss cable RF Procom 10MFMEXLL

Construction :

Inner conductor Bare copper/Copper clad steel Φ1.8 mm
Dielectric Foam /Solid PE Φ5.0±0.02 mm
Shield Bonded aluminium foil Φ5.2 mm
Outer conductor Tinned copper braid Φ5.7 mm
Shield coverage 85%
Sheath PVC/PE Φ7.5 mm

Electrical & Mechanical Characteristics :

Impedance 50±3 Ohm
Nominal capacitance 82 pF/m
Velocity of propagation 82%
Insulation resistance >5000 Mohm.Km
Inner conductor resistance 6.8(10.5) Ohm/Km
Outer conductor resistance 14.1 Ohm/Km
Operating temperature range -40°C - +85 °C
Min.bending radius 38 mm

WHY CHOOSE THIS CABLE:

• Best 5mm (.200") coaxial cable available for performances.

• 3,6dB/100m less at 50MHz than RG58 C/U, exceptional for applications in HF, mobile and portable, QRP, CB Radio, etc.

• Suitable for direct burial and totally waterproof.

• Also weatherproof and perfect for outdoor use.

• Superlative robustness and resistance thanks to the PE tearproof sheath.

• Incredible lightness: 1,4Kg x 100m less than RG58 C/U.

*The aluminium braid cannot be soldered. Our connectors are designed to avoid the welding on the braid.

ATTENTION: To install the connectors in polyethylene cables like this one, additional procedures must be carried out, as it has a more robust sheath than PVC ones. Infact it requires two longitudinal cuts to easily insert the component between the braid and the sheath without breaking it (alternately you can soften the polyethylene sheath using a hair dryer).

The low-loss coaxial cable, is prefabricated to have links N-Male (male) at both ends. This cable is ideal in areas where there is good external signal.

This cable (20m) can be used either to lengthen the cable from the external antenna to the transponder unit or used in conjunction with a signal splitter for connecting multiple antennas indoor coverage. The coaxial cable is prefab has links to N-Male (male) coax on both ends.

Low-loss (approx 6dB per 30m)
versatile
For all products transponder
Antennas for indoor and outdoor

Coax Type : Coaxial
Conductor Material : Copper Clad Aluminium
Conductor Type : Solid Conductor
Dielectric Material : FPE-FOAMED (Cellular) Polyethylene
Fire Rating : General Purpose (CM, CMG, CMX)
Flooded : No, Do Not Flood Over Braid
Impedance : 50 OHM nominal Impedance
Jacket Material : PE-Polyethylene
Outdoor : YES, Outdoor Grade Material
Screen/Shield Type : Both, Braid Over Foil

Best attenuation tested in a 10,3mm coax , boosting 19dB/100m at 2400 Mhz.

• Suitable for direct burial and totally waterproof.

• Also perfect for outdoor use and weatherproof.

• Superlative robustness and resistance thanks to the PE tearproof sheath.

• Incredible lightness: 45% lighter than average 10,3mm cable.

• Super thick braid of 192 wires that leads to a dramatic reduction of the background noise.

The low-loss coaxial cable, is prefabricated to have links N-Male (male) at both ends. This cable is ideal in areas where there is good external signal.

This cable (35m) can be used either to lengthen the cable from the external antenna to the transponder unit or used in conjunction with a signal splitter for connecting multiple antennas indoor coverage. The coaxial cable is prefab has links to N-Male (male) coax on both ends.

Low-loss (approx 6dB per 30m)
versatile
For all products transponder
Antennas for indoor and outdoor

Coax Type : Coaxial
Conductor Material : Copper Clad Aluminium
Conductor Type : Solid Conductor
Dielectric Material : FPE-FOAMED (Cellular) Polyethylene
Fire Rating : General Purpose (CM, CMG, CMX)
Flooded : No, Do Not Flood Over Braid
Impedance : 50 OHM nominal Impedance
Jacket Material : PE-Polyethylene
Outdoor : YES, Outdoor Grade Material
Screen/Shield Type : Both, Braid Over Foil

Coax Type : Coaxial
Conductor Material : Copper Clad Aluminium
Conductor Type : Solid Conductor
Dielectric Material : FPE-FOAMED (Cellular) Polyethylene
Fire Rating : General Purpose (CM, CMG, CMX)
Flooded : No, Do Not Flood Over Braid
Impedance : 50 OHM nominal Impedance
Jacket Material : PE-Polyethylene
Outdoor : YES, Outdoor Grade Material
Screen/Shield Type : Both, Braid Over Foil

Configuration: coaxial
Connector type: SMA jack
Minimum frequency: 10 GHz
Maximum frequency: 12 GHz
Number of ports: 2
Phase between ports: 90°
Max. power handling: 30 W
Impedance: 50 Ohm
Type: inductive


Supplied with SMA termination, 50 Ohm, 2W

WAY 2
FREQUENCY RANGE 9~10GHZ
INSERTION LOSS <1.2dB
VSWR <1.35:1
ISOLATION >22dB
AMPLITUDE BALANCE <+-0.3dB
PHASE BALANCE <+-3
POWER HANDLING 20W (FORWARD) - 3W (REVERSE)
SURFACE FINISH - NICKEL PLATING (CHEMICAL NICKEL) OR BLACK
CONNECTORS - SMA -FEMALE
NET WEIGHT - 0,045KG
SIZE - 35X28X15mm

1 Model number M12
2 Material Connector Body Nylon(PA66)+GF
3 Contact brass with gold plated
4 Sealing Sillica Gel
5 Property Current Rating 1.5A
6 Voltage Rating 125V
7 Contact Resistance <10mΩ
8 Insulation Resistance 100MΩ at DC 500V
9 Breakdown Voltage 1.5KV/1minute
10 Temperature Rating -40°C~+105°C
11 Durability(Plug/Unplug) 3000 times
12 Waterproof Rating IP68
13 Cable OD Range 3mm-10mm
14 Pins Range 8pin
15 Certificate UL, TUV, CCC, SAA, CE, RoHS

Given a power fed to the X value (any value expressed in Watts), the actual power output of the cable is shown in the table in the form
of remaining percentage. (for example, if we use a cable such as
M&P-HYPERFLEX 13, entering 1000 Watts over a length of 35m, at a frequency of 144 MHz, there remains 74.7 % of 1000).
For maximum applicable power, see the Power Handling of the cable concerned. From these values, have already been deducted the
SRL values, typical of each one of our models, for the respective frequencies.
REMEMBER: Make sure to match the line accurately!

Andrew CNT-400-FR coaxial cable, CNT® type RG-8U 50 ohms
Braided coaxial cable, non-halogenated polyolefin jacket, flame retardant, black, very low loss, sold by the meter.
10.3 mm external diameter.

This cable is suitable for 5 GHz and 2.4 GHz applications.

Attenuation at 2400 MHz, 21.65 dB per 100 meters.
Attenuation at 5000 MHz, 32.81 dB per 100 meters.

RoHS 2011/65/EU
ISO 9001:2008
