CHARACTERISTICS

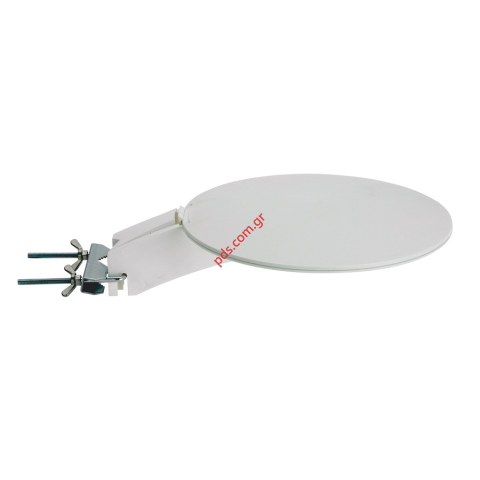

Type UFO 170
Max. Output level (@ full dig. load) VHF:108 / UHF: 104 dBµV
FREQUENCY
Band FM / DAB / DAB+ / VHF / UHF
Channels FM / 5...12 / 21...48
Frequency range FM 87,5...108 MHz
Frequency range DAB 200...240 MHz
Frequency range VHF 174...230 MHz
Frequency range UHF 470...694 MHz
LTE protection @ 700Mhz
GAIN
Gain - VHF 28.0 dB
Gain - UHF 27.0 dB
Noise figure 3.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Power Consumption (typ.) < 1.2 W
CONNECTORS
Connector Type F-female
MECHANICAL
Elements 1
Windload @42 m/s 5.5 N
Beamwidth horizontal 360 °
Beamwidth vertical 90 °
Bracketry Mast bracket/Universal mount/Plastic base/Centre mount
Product Length 325 mm
Product Width 255 mm
Product Height 65 mm
Packing QTY 1
Packaging Height 0,280 m
Packaging Width 0,290 m
Packaging Depth 0,090 m
Packaging Volume 0,007 m3
Net Weight 0,674 kg
Tara Weight 0,343 kg
Total Weight 1,017 kg
