Antenna VHF/UHF TV ALL BAND

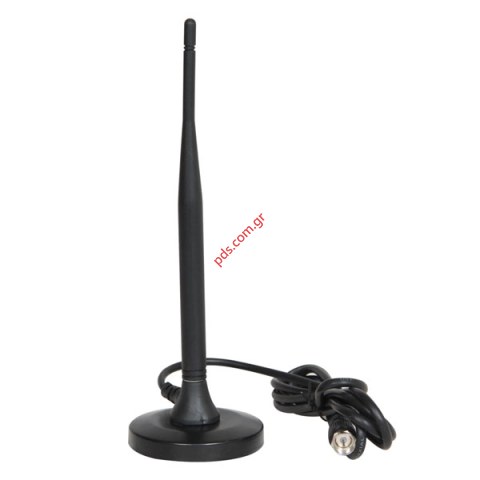

Magnetic antenna for TV VHF/UHF 20db with cable.
Για UHF/VHF 20-25db
Υποστηρίζει 1080p/1080i/720p
USB 75Ω

Magnetic antenna for car use 50cm MB-30

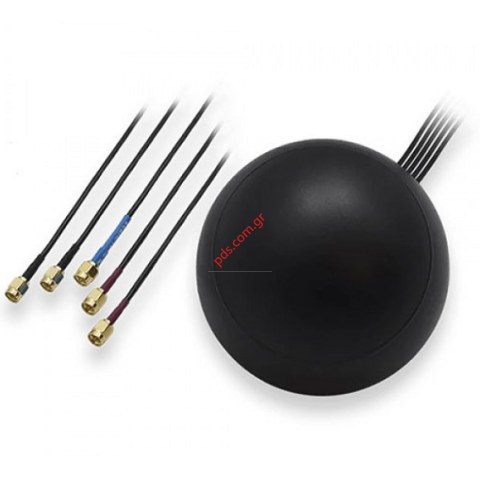

GNSS Antenna
Frequency Range: 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 3-5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <2.0
Connector SMA Male
LTE MIMO Antenna
Frequency Range: 698-960/1710-2690 MHz
Polarization Linear
Gain 3 dBi
V.S.W.R: <3.0
Impedance: 50 Ω
Connector: 2x SMA Male
WiFi MIMO Antenna
Frequency Range: 2400-2483.5/4900-5825 MHz
Polarization Linear
Gain 2 dBi
V.S.W.R: <2.5
Impedance: 50 Ω
Connector: 2x RP SMA Male
Mechanical/Environmental
Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <550g
Housing Dimensions: Ø 110x55 mm
Cable: 5x RG174, 3000 mm
RoHS Compliant: Yes

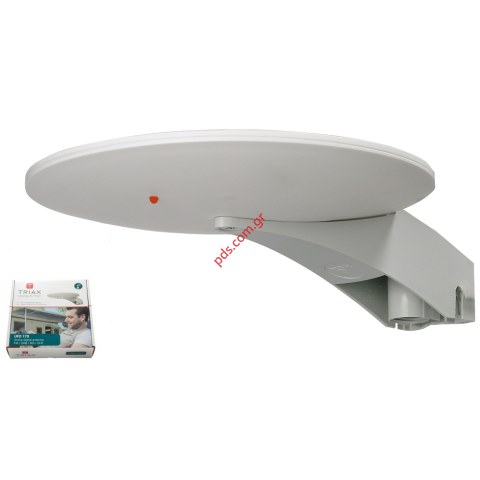

CHARACTERISTICS
Type UFO 170
Max. Output level (@ full dig. load) VHF:108 / UHF: 104 dBµV
FREQUENCY
Band FM / DAB / DAB+ / VHF / UHF
Channels FM / 5...12 / 21...48
Frequency range FM 87,5...108 MHz
Frequency range DAB 200...240 MHz
Frequency range VHF 174...230 MHz
Frequency range UHF 470...694 MHz
LTE protection @ 700Mhz
GAIN
Gain - VHF 28.0 dB
Gain - UHF 27.0 dB
Noise figure 3.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Power Consumption (typ.) < 1.2 W
CONNECTORS
Connector Type F-female
MECHANICAL
Elements 1
Windload @42 m/s 5.5 N
Beamwidth horizontal 360 °
Beamwidth vertical 90 °
Bracketry Mast bracket/Universal mount/Plastic base/Centre mount
Product Length 325 mm
Product Width 255 mm
Product Height 65 mm
Packing QTY 1
Packaging Height 0,280 m
Packaging Width 0,290 m
Packaging Depth 0,090 m
Packaging Volume 0,007 m3
Net Weight 0,674 kg
Tara Weight 0,343 kg
Total Weight 1,017 kg

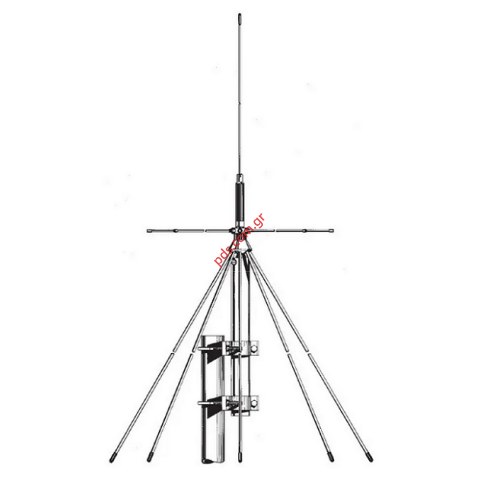

High class discone antenna, which is suitable as a broadband antenna in reception range as well as transmission over many amateur radio frequencies. It is made of stainless steel, chrome-plated brass and oxidised aluminium and thus improves optimum electromechanical properties.
Highlights & Details

170 cm
Discone antenna

Facts

Connection SO-239.

Delivery

Antenna
User manual.

Technical data
Connector PL
Frequency range 25 - 1300 MHz
Power
200 W
Mounting type Permanent fixing
Length 170 cm
Frequency range 25 - 1300 MHz
Product type Airband scanner station aerial

The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Special Features:

• Ultra-wideband design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable for transmit)
• Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium
• Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands
• Excellent "shop" antenna for testing various transmitters on a single coax
• Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
Specifications:

Bands: 25-3000 MHz
Gain dBi: 2 (nominal)
Max Power Rating: 144 MHz up: 200 watts
6m: 20 watts FM, 50 watts PEP
Height: 67"
Connector: Type-N
Element Phasing: Wideband Discone

Remarks: Adjustable 50-54 MHz

KAD-150 Professional VHF antenna fiberglass collinear.
Frequency 142-152 MHz.
Antena particularly suitable for adverse sutuaciones, mountain, snow, wind, buildings, etc. ..
Stainless steel mount, the antenna connection N female.

Professional VHF vertical antenna. Double dipole.
Power: 500 W. Gain: 3.5 dBd (5.65 dBi).
Polarization: Vertical.
Impedance: 50 Ohm. ROE - SWR: 1.2:1.
Mounting: Mast 30-45 mm.
Length: 2700 mm.
Connector type: N Female.
Weight: 1660 gr.
Wind resistance: 187 km / h.
Color: Black. Material:
Fiber-steel.
