Antenna Marine

Rachet mount holder for SeaCell RC-14 Marine Antennas 3G/4G

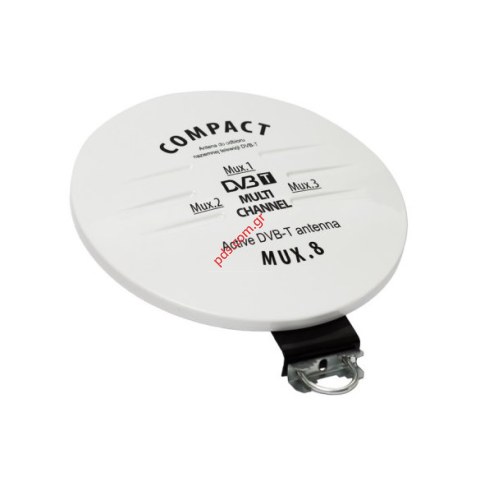

The COMPACT TV antenna is the highest quality device for demanding customers. It is made of very high-impact polystyrene, so it can be used in any, even the most unfavorable weather conditions.
It enables the reception of analog and digital DVB-T TV programs in the range of 174 - 230 MHz, 470 - 790 MHz.
This is possible thanks to the use of a modern amplifier.
This antenna has a small size and weight, so it can be successfully used practically anywhere. Balcony, window, roof or movable objects are perfect places for its installation.
COMPACT TV is omnidirectional, and the HORIZONTAL polar pattern is its extraordinary advantage. This allows you to skip directing it towards the transmitter, which is a great convenience. So if you are looking for an antenna that will not be damaged by wind, frost or sun, and the installation of which will be simple and intuitive, this is the perfect solution that can meet all your expectations.

energy gain: 20 - 36 dB
output: 75 Ohm
frequency range: 174 - 230 MHz, 470 - 790 MHz
orientation: 360 degrees
power supply: 230V AC

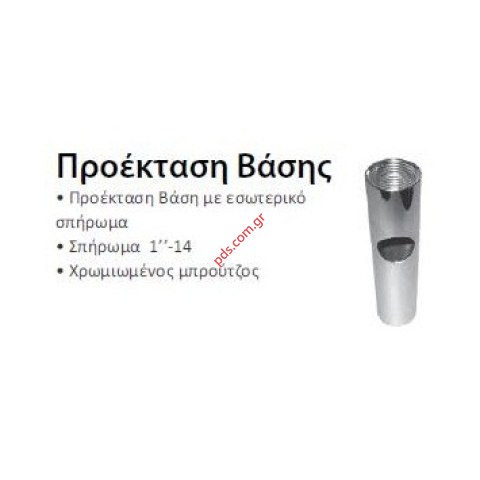

Adaptor for base mount Marine 4G N286F-03F 420 ratchet extension master

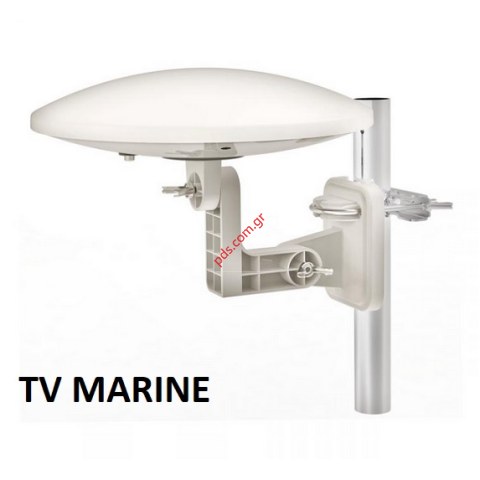

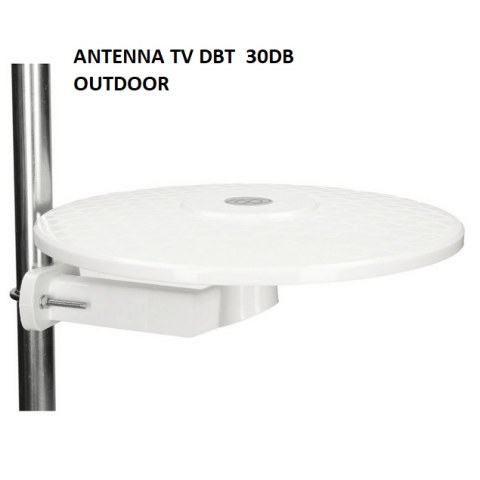

Main parameters
----------

Type: Omni-directional
Frequency: VHF: 47-230 MHz, UHF: 470-862 MHz
Range: VHF, UHF
Gain: Max 30 dB
Output level: 105 dBuV
Impedance: 75 Ohm
Power supply: DC 12 V / 50 mA (power adapter included)

----------
Product features
----------

Compatible with digital signals (DVB-T, ISDB-T; DMB-T / H, ATSC)
Provides digital and analog TV signal reception
Thanks to the built-in preamplifier, the antenna achieves high gain and low noise
Waterproof construction with anti-UV coating
Light, compact and easy to install

Holder ratchet mount Marine N286F stainless stell

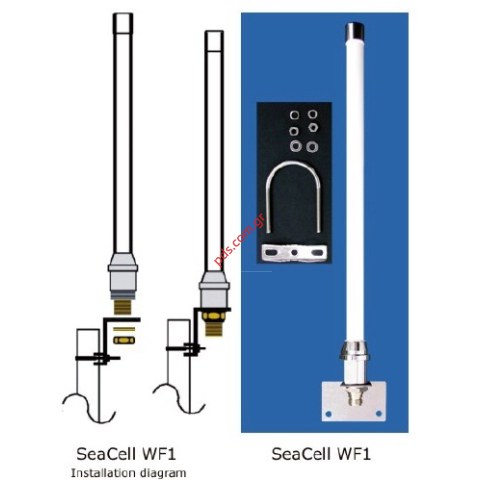

Marine antenna SeaCell for WiFi Networks 2400mhz 8.5dbi

The best solution to increasing the range of signal and
compatible with every mobile repeater. The antenna gain equals 6 dBi boosting is the Omnidirectional Outdoor Antenna Seacell‐12.

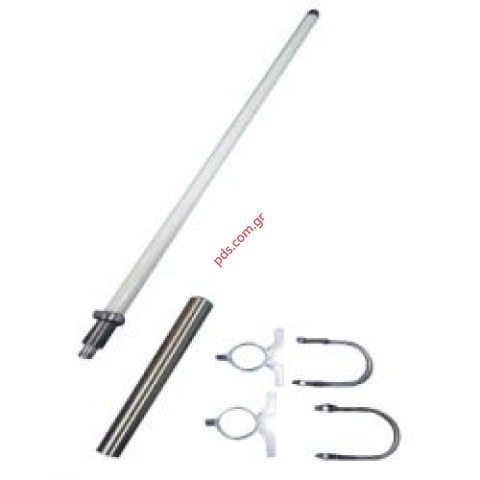

SeaCell‐12 Antenna 20.14 is an omnidirectiona
high gain Marine Antenna. It worksin a frequency range from 900MHz 1800Mhz to 2600 Mhz

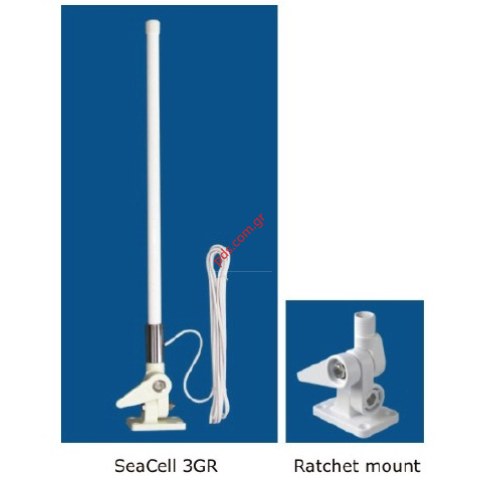

Marine antenna SeaCell for 3G Networks 2100mhz 9.0dbi.
Including 3m RG-58 cable with rachet adjustable holder

Specifications:
Frequency range: 690~960/1710~1990/1990~2170/2300~2700Mhz
Gain: 7~9dBi
V.S.W.R: <2.0
Impedence: 50 ohm
Connector: N Type Female
Dimension: 756mm +/-10 x OD20mm
Weight: 0.76Kg
Polarization : vertical
Power handling : 50W
Colour : white
Rated wind velocity : 60m/s
Working Temperature : -40~60℃
Lightning Protection : Direct Ground

Integrated MIMO 4x4 multi-band LTE omni antenna + Wi-Fi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX12 or RUTX14 (All-in-one)
QuSpot MIMO 4x4 omni LTE antenna (4x SMA connector for 2x embedded LTE modems or 1x MIMO 4x4 LTE modem) for Teltonika RUTX12 and RUTX14 routers is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. If you use RUTX12 or RUTX14 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Poyntingʼs new PUCK 5 antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz) and GPS/GLONASS. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 617 to 4200 MHz band, this includes the most popular international LTE/5G bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.


Antenna 5-in-1 Transportation & IoT/M2M.
617 - 4200 MHz; 2X2 LTE (MIMO), 6dBi; 2X2 Wi-Fi (MIMO), 7.5dBi; GPS/GLONASS, 21dBi

5-in-1 LTE high performance multi frequency
2G/3G/4G/LTE/5G antenna
LTE (2X2 MIMO), Dual-band Wi-Fi (2X2 MIMO), GPS/GLONASS
Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band
Ground plane independent
Robust, vandal resistant and waterproof (IP 69K)
Ideal for transportation, marine and IoT/M2M use
Ultra-versatile mounting options for easy installation

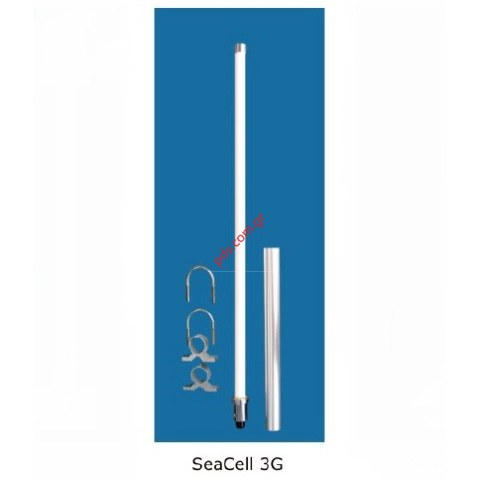

Marine antenna SeaCell for 3G Networks 900/1800/2100mhz 7.0dbi.

The CXL 2-3 GHz is an ultra broad-banded, 0 dBd, vertically polarized, omnidirectional rod-type base station and marine antenna for the 2 - 3 GHz band.
The 1” revolving nut mounting system is standard throughout the marine sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead by use of FLG or SMR 2, side-mounted on the mast (SMR 1) or mounted on a cross-beam (FLG). Also, the antenna can be mounted on deck or rooftop by means of the FLG.
The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel to or in the neighbourhood of other metal parts, such as masts, supporting wires etc., otherwise the SWR and the radiation pattern may be strongly influenced.
A conical glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.

• Antenna for network GSM and 3G.
• 880‐960/1710‐2170Mhz
• 900: 20W & 1800/UMTS: 10W
• Gain (dBd/Marine dB) 0/3 - 0/3
• 44cm high , Base Ν240
• 50 Ohm
Including base holder inox Ν28F sure for adaptor Ν280-01F.

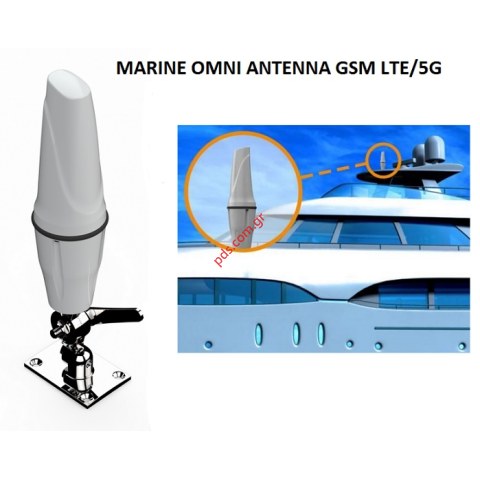

The Poynting OMNI-404 is a wide band LTE/5G antenna with a smaller profile radome which is specifically designed for adverse marine & coastal environments. This antenna covers all contemporary LTE operating frequencies, from 698 to 3800 MHz, with excellently balanced gain across all frequencies, enhancing LTE performance features, such a multi carrier aggregation (CA). This antenna is also suitable on all 5G networks up to 3800 MHz.

The antenna is designed for superior pattern control over the entire frequency range, making the OMNI-404 an exceptional omni-directional antenna for its size and application. Poynting Antennas achieves this through a new antenna design using multiple dipoles and a unique (patented) feed network. A standard 1-inch (14 TPI) marine mount connector is used for simplified installation to most standard marine attachments.
FEATURES

Medium gain omni-directional antenna
The antenna is purpose built for marine and coastal applications
Fits directly to a standard 1-inch (14 TPI) marine mount
UV and saltwater resistant
Robust and weather resistant
APPLICATION AREAS

Marine applications / Yachts / Boats / Ferries
Enhanced LTE reception
IoT and M2M applications
Areas with poor data signal reception
Improve data transmission connection reliability & stability

The most important qualities

For all 4G frequencies
Omnidirectional - not as effective as a directional, but doesn't need to be directed
Estimate for actual gain of this antenna: About -4dBi @ 698-960 MHz, 2dBi @ 1710-2700 MHz, 1.5 dBi @ 3400-3800 MHz

Important information

Quite small-sized -4-2dBi 3G/4G/5G/LTE/GSM antenna. Mast mount included.

Product height (mm) 252
Product width (mm) 75
Product depth (mm) 75
Product weight (g) 350

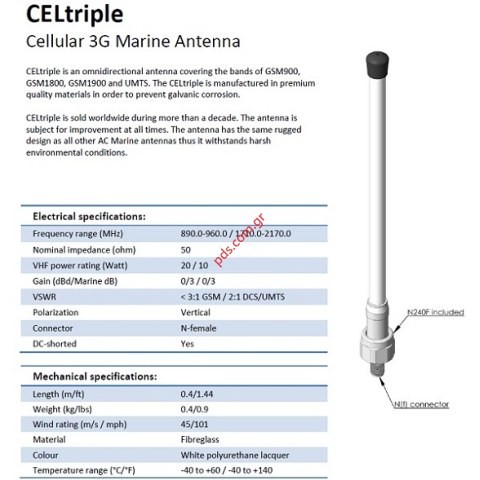

Marine Antenna CELtriple GSM 4G Marine white Mini.
• Antenna for network GSM and 3G+4G.
• 880‐960/1710‐2170/2400-2690Mhz
• 900: 20W & 1800/UMTS: 10W
• Gain (dBd/Marine dB) 0/3 - 0/3
• 44cm high , Base Ν240
• 50 Ohm
Including base holder inox Ν28F sure for adaptor Ν280-01F.

The OMNI-402 is an ultra-wide band antenna, which covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies. The antenna also offers 2X2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications. Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency band, which is becoming more popular in various regions and countries. This antenna is also 3300 – 3800 MHz capable for coastal and inland use.

Frequency Bands All 4G frequencies 700-2600MHz, All 4G/5G frequencies 700-3500MHz, 4G/5G 700MHz (most rural areas), 4G 800MHz (rural area), Helium 865MHz (EU), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), 4G 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 4G 2100 MHz (urban area), WLAN/WiFi 2.4GHz, 4G 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 5G 3.5 GHz, WLAN/WiFi 5GHz

Frequency range (MHz) 410-3800
Antenna amplification (dB) 1 @ 410-470MHz, 6.2 @ 698-2700MHz, 2.5 @ 3400-3800MHz
Antenna position Outdoor
Antenna direction Omnidirectional
Mast clamp (mm) 30-55
Wall mount included No
Product height (mm) 646
Product width (mm) 75
Product depth (mm) 75

This high quality multi band antenna is composed of five physically separate transmitting and receiving units. The GNSS patch antenna receives signals from the Global Navigation Satellite Systems GPS and GLONASS. Two PCB antennas in MIMO mode working in all popular 5G and LTE bands. Two other PCB antennas in MIMO mode cover off the WLAN area in the dual band completely. Furthermore, this multi-band antenna is capable of GSM, UMTS, Bluetooth, Z-Wave and ZigBee signals to be transmitted. The NL-400 delivers and transmits signals in all circumstances reliably, quickly and accurately.

5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.
