Parameter
Function
Ultrasonic cleaning
Ultrasonic Frequency 28/40kHz (other frequency can be customized)
Tank Material SUS 304 (SUS 316 can be customized)
Thickness of tank 3mm
Inner tank dimension 2500*1500*1000mm
Tank Capacity 3750L
Transducer 576pcs
Ultrasonic Power 28800W (28.8KW)
Heating Power 36000W (36KW)
Time setting of Ultrasonic 0~99 hours
Temperature setting Room temperature ~ 95°C adjustable
Drain value
Available Water inlet/outlet
Available Generator 20 sets
Generator power control 1800W
Generator shelf Available
Basket Available
Basket load
1200KG

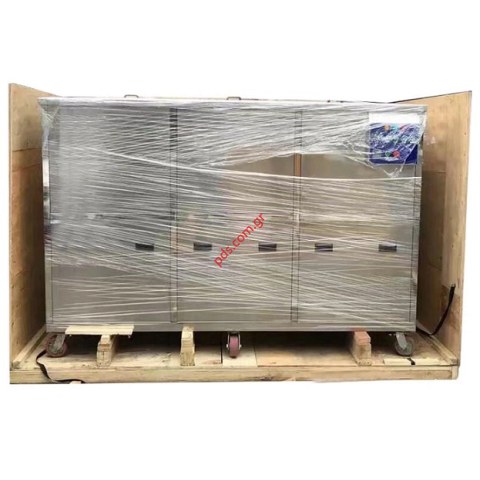

Packing
Overall size 2930*1930*1600cm
Packing size 2930*1930*1600cm
Packing detail By wooden case(No logs, free of fumigation)
N.W/G.W 1200KG/1250KG
Power supply 380V 3 phase; 220V 3 pahse; 415V; 600V
Warranty 1 year warranty for spare parts, all life technical support
Certificate CE, RoHS; FCC, REACH
Lead time 20~30 working days after deposit
Optional functions
Filtration cycle system
Available; capture dirty water, recycle clean water
Lifting system for basket
Available; take the basket up and down
Dunking system
Available; Speed up cleaning
Bubbling Available; need to connect air compressor
Electrolysis Available; For cleaning more complex structure mold
Cooling system Available; To cool down inflammable and explosive
Constant temperature Available;
Roller barrel Available; for clean coins and big quantity parts
Anti-explosion electric box
Available;
Deionized(DI) water Available
Double/Multi frequency
Available; 28/40/20/68/80/132KHz
