710 is a modular and flexible infrared technology for reworking advanced IC packages like BGAs, micro-BGAs, QFPs, SOICs and other mounted component.
710 is a modular and flexible infrared technology for reworking advanced IC packages like BGAs, micro-BGAs, QFPs, SOICs and other mounted component. This focused infrared soldering system generates heat through concentration of infrared head waves for effective, high yield and flawless rework. Safe and effective, easy to operate infrared technology in a simplicity of a handtool.
Features:
Sophisticated Infrared (IR) welding gun for focused component heating.
Large back heater/preheating area which uses medium wave infrared (IR).
Portable PCB workholder.
Digital readout of setting with closed-loop electronic control for simple dial control.
Ergonomic design allows easy operation of the equipment.
Comes in with a footswitch for better mobility.
Power Input: 220 V(can be modified as requested)
Frequency: 50 Hz
Power Consumption: Infrared welding gun 200W, preheater 500W, cooling stand 10W
Output Voltage: Infrared welding gun below 24V, preheater 220V
Temperature Range: Infrared welding gun 100 - 500B0C, preheating station 50 - 300B0C
Total Current: 5A
Heating Element: Welding gun - infrared light source, preheating station - quartz
Dimensions:
Main unit: 220 x 70 x 250 mm
Preheating station: 220 x 70 x250 mm
Cooling stand: 140 x 55 x 180 mm

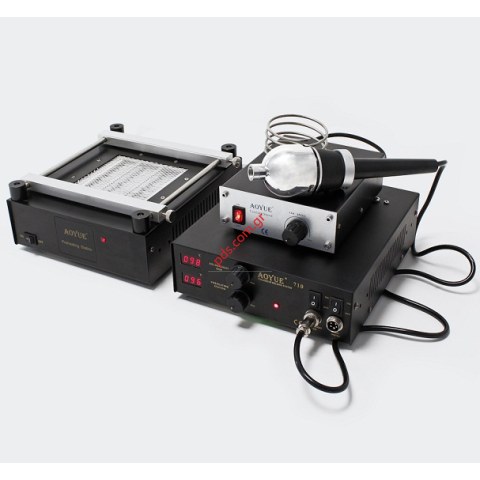

Package Contains
Main unit (a)
Preheating station (b)
Cooling stand (c)
Footswitch (d)
Infrared welding gun (e)
PCB holder (f)
Spectacle (g)
