QUICK

Description

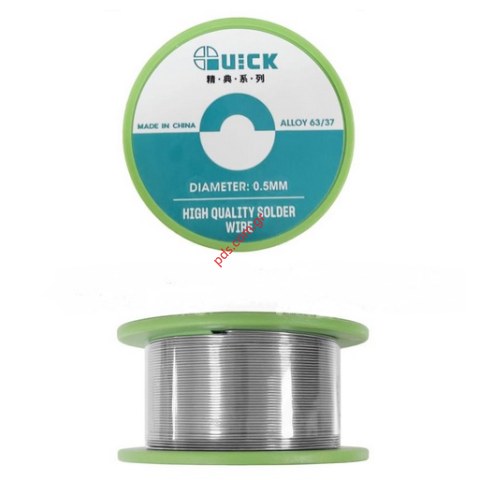

Made of high-grade Sn, Pb and soldering flux, durable and reliable
Excellent solderability, with bright and full soldering point
Perfect for all kinds of soldering uses
Applied to mobile phone, computer or digital products maintenance and welding industry

Specification:


Model
Tin(Sn) 63%
Lead(Pb) 37%
Flux 1.0 – 3.0%
CI(Flux) <0.1%
Expansion 75%
Wire Diameter 0.5mm
Weight 40g

Soldering Station QUICK 236 ESD is used for SMD components mounting and rework, soldering common and directly-inserted electronics and lead-free soldering. It is a new soldering station with a traditional heating system (ceramic heater), characterized by a 90 W power, temperature adjusment from 80°C to 480°C and temperature stability of ±2°C.

Specification:
Power Consumption: 90 W
Temperature Range: 80°C ~ 480°C
Temperature Stability: ±2°C
Ambient Temperature (Max): 0°C
Heater Operating Voltage: 28 V AC
Tip to Ground Potential: < 2 mV
Tip to Ground Resistance: < 2 Ω
Power Cable Length: 1.2 m
Handle Length ;190 mm
Dimensions, L×W×H: 160 × 105 × 125 mm
Weight: 2.3kg

Features:
- Microcomputer digital display, PID temperature control, temperature and fast rebound, truly lead-free soldering.
- Using high temperature ceramic heater, long service life.
- But with many long life universal welding head, easy to use.
- Adopt digital temperature calibration, easy to operate.
- The welding handle light, use comfortable.
- Novel appearance, structure is firm.
