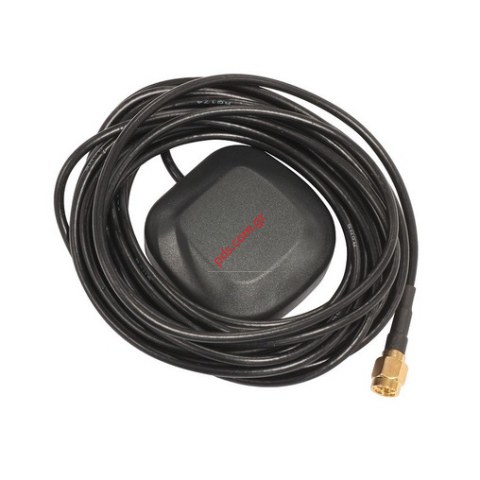

ACGPSA is standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Specifications
Product code ACGPSA
Center frequency 1575.42 Mhz
Gain 26 dB
Water resistance 100% waterproof (IP67)
Connector SMA
Cable 5 m RG-174/U (standard)
Standard mounting Magnetic base
DC voltages 3 V +-0.3 V
DC current 8 mA max
Dimensions 46.5 x 46.5 x 12.5 mm
Weight 35 g (without cable), 120 g (with cable and connector)
Operating temperature -40°C .. +85°C tested

The LTE is an omnidirectional antenna specifically designed for LTE frequencies. It is an excellent companion to our LTE devices, such as the wAP LTE and LtAP series. The antenna has a 5 dBi gain, improving your connection in the areas with inadequate LTE service coverage, allowing you to increase your connection speed.

Product specifications
Details
Product code MTAO-LTE-5D-SQ
Antenna gain 5
Beamwidth 360°
Connector 2 x SMA female
Diameter x Depth 129 x 129 x 34 mm
Frequency Range 699 - 2690 MHz
Operating Temperature -40°C .. +70°C tested - IP54

Specifications
Details
Product code RBSXTsq2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 129 x 129 x 34 mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C .. +70°C
Powering
Details
Max Power consumption 5W
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Wireless
Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 10
Wireless 2.4 GHz chip model QCA9533
Ethernet
Details
10/100 Ethernet ports 1
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -93
6MBit/s 30 -94
54MBit/s 26 -80
MCS0 30 -94
MCS7 25 -75
