The HM785 DMR mobile radio is the next generation of professional digital mobile radio providing greater flexibility and scalability. This mobile radio with DMR technology supports a single control head as standard with options for remote control head mounting and dual control head to suit different environments (such as vehicles, motorcycles and fixed control rooms) ensuring efficient communication. The new UI interface facilitates faster operations and the AI-based noise cancellation technology guarantees clearer voice even in the noisiest environments. It is also the first ever DMR radio that can support the IP Transit Solution feature. It comes with a rich digital mobile feature set including a broad range and ability to integrate into existing services, which provides greater efficiency.
Hytera's HM785 Series is a robust and reliable system terminal with a high level of scalability. The device is suitable for use as a vehicular or fixed base and is perfectly integrated in all conventional analogue or digital DMR Tier II systems. Thanks to up-grade software, HM785 can also operate in MPT1327 analog standard Trunking systems (multi-access) or in Hytera XPT (eXtended Pseudo Trunk) digital trunking systems without control channel or in modern more advanced digital Trunking systems with standard control channel DMR Tier III (similar to TETRA).

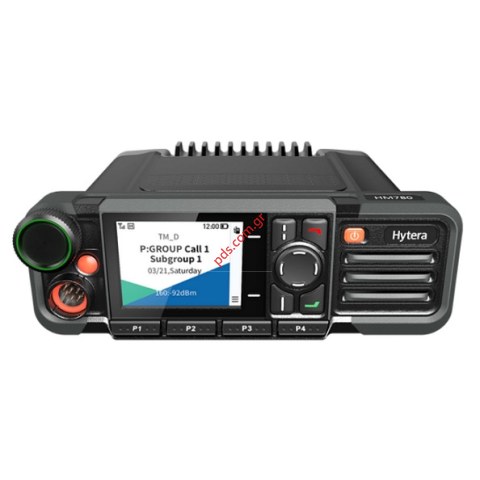

HM785 Series Hytera - Mobile / fixed transceiver with 2.4 "TFT-LCD display is clearly visible in bright light, has a resolution of 240 × 320 pixels, supports up to 262000 colors and can contain, excluding the status, up to 10 lines, has a selector for volume adjustment or for unlimited channel / group change (360 °), a large and easy to press emergency button, four programmable buttons, start and end call button and, finally, the PTT button.
IP54 protection degree in compliance with MIL 810 C / D / E / F / G standards. Dimensions H x W x D 61.5 x 177 x 179 mm and weight 1520 g.
The HM785 radio includes SD card, for audio recording, while the HM785G radio includes BT5, for programming, audio accessories and indoor location, GNSS, for outdoor location, and SD card, for audio recording.
Features: Hytera HM785
Frequencies: UHF 350-470 MHz / VHF 136-174 MHz
Programmable channels: 1024
Programmable zones: 64
Channels per zone: 256
Channel (analog): 12.5kHz / 20kHz / 25kHz
Working voltage: 13.6V ± 15%
Power Consumption:
Standby less than 0.5A
Reception less than 2 A
Transmission:
1 W less than 3 A
5 W less than 4 A
25 W less than 8 A
Frequency stability: ± 0.5ppm
Antenna impedance: 50Ω
Dimensions: 61.5 x 177 x 179 mm
Weight 1520 g
LCD display 320x240 pixel, 262000 colors, 2.4 ", 8 lines
