Non-contact soldering for high requirements.
The air volume and the temperature can be set or adjusted in a wide range, the nozzles can be easily replaced so that each component is soldered by using the suitable nozzle, air and temperature setting. Heating elements and nozzles conform to international standard; suitable for the most SMD components, for instance LEDs, SOIC, CHIP, QFP, PLCC and BGA.
The antistatic design as well as the microprocessor control of the 968A + multifunction repairing system prevents PCBs and electronic components from being damaged due to static charging. The control panel as well as the whole rework station are easy manageable. The built-in smoke absorber extracts the fume directly at the source where it is generated. The temperature of the soldering iron is showed on the digital display and can be adjusted by using the rotary knob allowing a fast and precise temperature setting.
The station informs the user via display about possible malfunctions at the sensors or at the heating elements. Another function of the station is the Aoyue Auto Cooling Function, it blows cold air on the heating element when the hot air is switched off until reaching a low temperature in order to extend the life of the heating element. The repairing system can also be used for heat shrink-tubing and is indispensable in the filed of chiptuning, repairing mobile phones, laptops and video game consoles.
high heating capacity
exact adjustment possibilities
auto cooling and follow up phase
SMD fine soldering iron
Blow nozzles in accordance with international standard
very fast heating suit
The station is delivered with a transport safety (a red cross screw that secures the pump during transport), diese must be removed before using the station for the first time! After removing the safety transport the sation is fully operational. You need only 5 minutes to remove the red cross screw and then you have a functional station. The temperature and the air flow can be adjusted via "AIR" and "Heater".
able for SOIC, CHIP, QFP, PLCC, PSOP, SSOP, BGA etc.

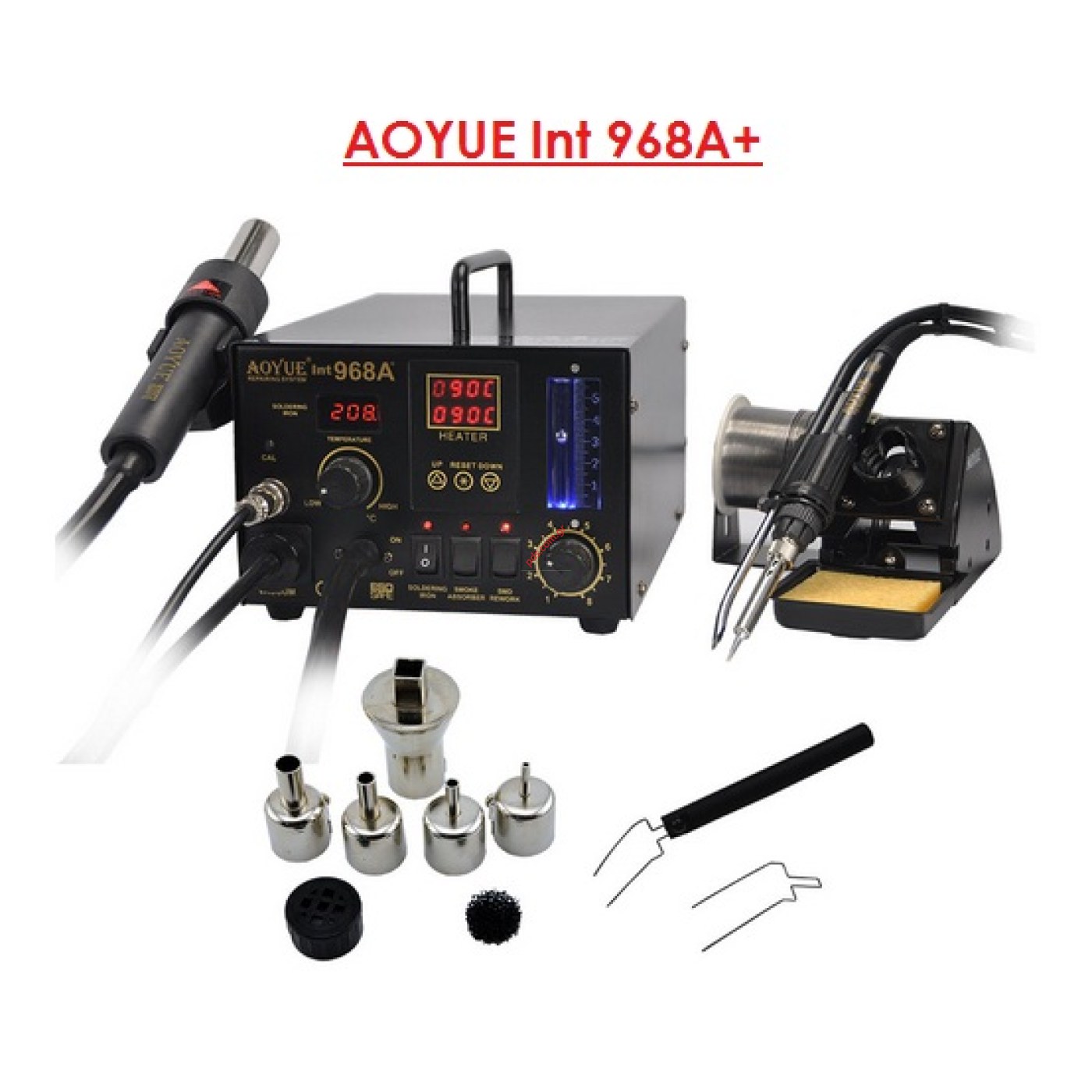

AOYUE Int 968A+ Package Content:
1 unit Int968A+ Main Station with Hot Air Gun and holder.

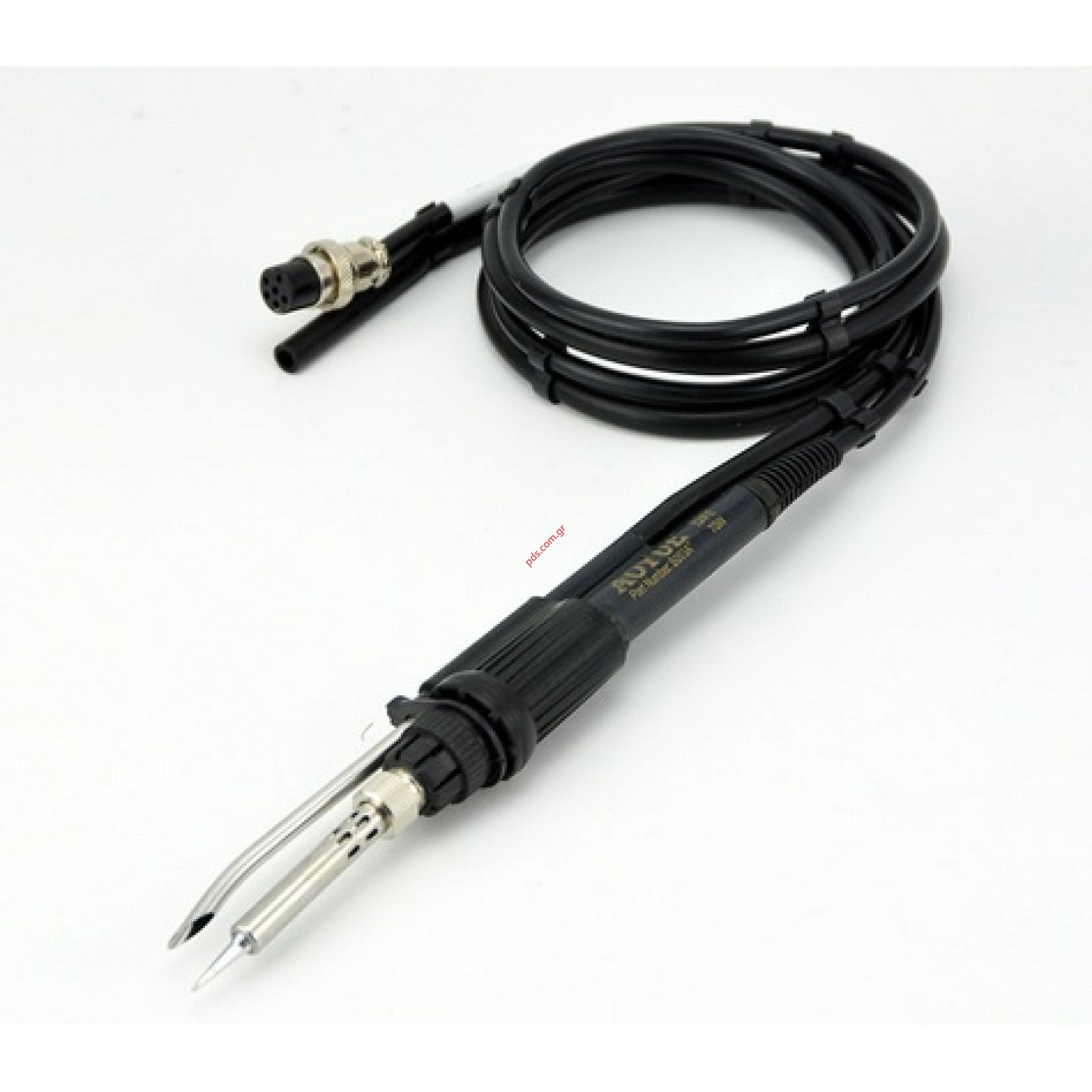

1 pc. B003A Soldering Iron with Smoke Absorbing function
1 pc. 1124 Air Nozzle
1 pc. 1130 Air Nozzle (Single 4.4mm)
1 pc. 1196 Air Nozzle (Single 7 mm)
1 pc. 1197 Air Nozzle (Single 9 mm)
1 pc. 1313 Air Nozzle
1 pc. 2660 Soldering Iron Stand
1 pc. Filter Vacuum Cap
1 pc. Black Filter Pad (round)
1 pc. G001 IC Popper
1 pc. Power Cord
1 pc. Instruction Manual
