The OMNI-402 is an ultra-wide band antenna, which covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies. The antenna also offers 2X2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications. Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency band, which is becoming more popular in various regions and countries. This antenna is also 3300 – 3800 MHz capable for coastal and inland use.
Frequency Bands All 4G frequencies 700-2600MHz, All 4G/5G frequencies 700-3500MHz, 4G/5G 700MHz (most rural areas), 4G 800MHz (rural area), Helium 865MHz (EU), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), 4G 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 4G 2100 MHz (urban area), WLAN/WiFi 2.4GHz, 4G 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 5G 3.5 GHz, WLAN/WiFi 5GHz
450-470MHz band
This antenna also supports the Wi-Fi/WiMax/LTE 3.3GHz- 3.8GHz frequencies (not recommended for marine applications)
Easy mounting with feed through 1 inch marine standard mounts
Robust and All weather proof (IP 68)
UV and Saltwater protected against tempestuous weather conditions.

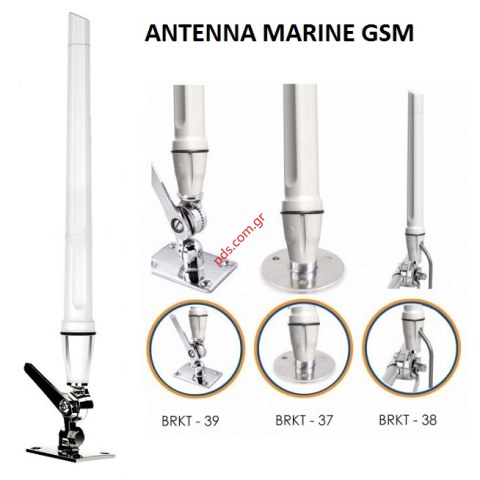

Various mounting options available.
Frequency range (MHz) 410-3800
Antenna amplification (dB) 1 @ 410-470MHz, 6.2 @ 698-2700MHz, 2.5 @ 3400-3800MHz
Antenna position Outdoor
Antenna direction Omnidirectional
Mast clamp (mm) 30-55
Wall mount included No
Product height (mm) 646
Product width (mm) 75
Product depth (mm) 75
Weight 80grm
ASK FOR BRACKET OPTIONS
