Andrew Commscope Type-N Male Connector for FSJ1-50 Superflex Cable (Good to 6 GHz).

Interface N Male

Body Style Straight

Mounting Angle Straight

Connector Impedance 50 ohm

Operating Frequency Band 0 – 18000 MHz

Average Power 0.4 kW @ 900 MHz

Peak Power, maximum 6.40 kW

Shielding Effectiveness -110 dB


MFR: Andrew / Commscope

Andrew Commscope Type-N Male Connector for FSJ1-50A Angle Superflex Cable (Good to 6 GHz).

Interface N Male Body Style Straight Mounting Angle Straight Connector Impedance 50 ohm Operating Frequency Band 0 – 18000 MHz Average Power 0.4 kW @ 900 MHz Peak Power, maximum 6.40 kW Shielding Effectiveness -110 dB
MFR: Andrew / Commscope


Captivated Center Pin, Hex Head Cap.
MFR: Andrew / Commscope

General Specifications
Interface N Male
Body Style Straight
Brand HELIAX®
Mounting Angle Straight

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 18000 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical -116 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 565.00 V
dc Test Voltage 1600 V
Outer Contact Resistance, maximum 0.25 mOhm
Inner Contact Resistance, maximum 1.00 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 0.4 kW @ 900 MHz
Peak Power, maximum 6.40 kW
Shielding Effectiveness -110 dB

Mechanical Specifications
Outer Contact Attachment Method Self-clamping
Inner Contact Attachment Method Captivated
Outer Contact Plating Trimetal
Inner Contact Plating Silver
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Connector Retention Tensile Force 450 N | 101 lbf
Connector Retention Torque 1.40 N-m | 1.03 ft lb
Insertion Force 124.55 N | 28.00 lbf
Insertion Force Method IEC 61169-16:9.3.5
Pressurizable No
Coupling Nut Proof Torque 1.70 N-m | 1.25 ft lb
Coupling Nut Proof Torque Method IEC 61169-16:9.3.11
Coupling Nut Retention Force 450.00 N | 101.16 lbf
Coupling Nut Retention Force Method IEC 61169-16:9.3.11

Dimensions
Nominal Size 1/4 in
Diameter 20.25 mm | 0.80 in
Length 47.94 mm | 1.89 in
Weight 43.83 g | 0.10 lb

D i m e n s i o n s
Nominal Size 7/8 in
General Specifications

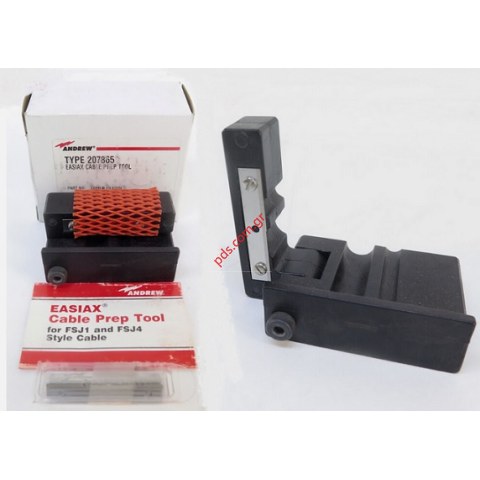

Tool Type Manual cable preparation tool
Application Prepares cable for connector attachment
Cutting Blade Life 25 cable preparations
Cutting Blades Included 1
Jacket Blades Included 1
Material Type, Body Engineered plastic
Package Quantity 1
P a c k e d D i m e n s i o n s
Height 9.5 cm | 3.8 in
Length 5.1 cm | 2.0 in
Shipping Weight 0.25 kg | 0.55 lb
Width 7.6 cm | 3.0 in
R e g u l a t o r y C o m p l i a n c e / C e r t i f i c a t i o n s
Agency Classification
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system

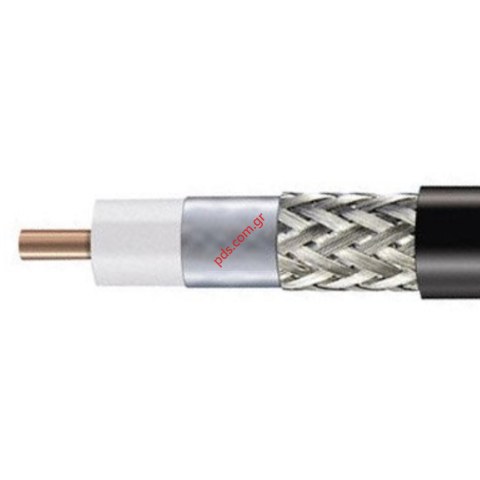

Ομοαξονικό καλώδιο Andrew CNT-400-FR, τύπου CNT® RG-8U 50 ohms
Πλεκτό ομοαξονικό καλώδιο, μη αλογονωμένη θήκη πολυολεφίνης, επιβραδυντικό φλόγας, μαύρο, πολύ χαμηλής απώλειας, πωλείται με το μέτρο.
Εξωτερική διάμετρος 10,3 mm.

Αυτό το καλώδιο είναι κατάλληλο για εφαρμογές 5 GHz και 2,4 GHz.

Εξασθένηση στα 2400 MHz, 21,65 dB για 100 μέτρα.
Εξασθένηση στα 5000 MHz, 32,81 dB για 100 μέτρα.

RoHS 2011/65/ΕΕ
ISO 9001:2008
