The Poynting OMNI-404 is a wide band LTE/5G antenna with a smaller profile radome which is specifically designed for adverse marine & coastal environments. This antenna covers all contemporary LTE operating frequencies, from 698 to 3800 MHz, with excellently balanced gain across all frequencies, enhancing LTE performance features, such a multi carrier aggregation (CA). This antenna is also suitable on all 5G networks up to 3800 MHz.

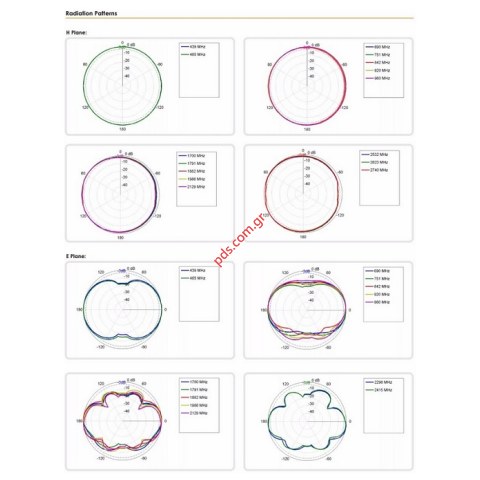

The antenna is designed for superior pattern control over the entire frequency range, making the OMNI-404 an exceptional omni-directional antenna for its size and application. Poynting Antennas achieves this through a new antenna design using multiple dipoles and a unique (patented) feed network. A standard 1-inch (14 TPI) marine mount connector is used for simplified installation to most standard marine attachments.
FEATURES
Medium gain omni-directional antenna
The antenna is purpose built for marine and coastal applications

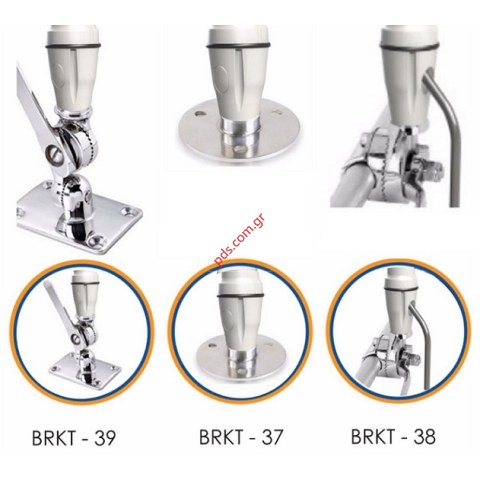

Fits directly to a standard 1-inch (14 TPI) marine mount
UV and saltwater resistant
Robust and weather resistant
APPLICATION AREAS
Marine applications / Yachts / Boats / Ferries
Enhanced LTE reception
IoT and M2M applications
Areas with poor data signal reception
Improve data transmission connection reliability & stability
The most important qualities
For all 4G frequencies
Omnidirectional - not as effective as a directional, but doesn't need to be directed
Actual gain of this antenna: About -4dBi @ 698-960 MHz, 2dBi @ 1710-2700 MHz, 1.5 dBi @ 3400-3800 MHz
Frequency Bands All 4G frequencies 700-2600MHz, All 4G/5G frequencies 700-3500MHz, 4G/5G 700MHz (most rural areas), 4G 800MHz (rural area), Helium 865MHz (EU), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), 4G 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 4G 2100 MHz (urban area), WLAN/WiFi 2.4GHz, 4G 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 5G 3.5 GHz
Important information
Quite small-sized -4-2dBi 3G/4G/5G/LTE/GSM antenna. Mast mount included.
Product height (mm) 252
Product width (mm) 75
Product depth (mm) 75
Product weight (g) 350
Specifications
- Ports: 1
- SISO / MIMO: SISO
- Coax Cable Type: N/A
- Coax Cable Lenght: N/A
- Connector type: N-Type (F)
- Frequency bands: 698-960 MHz | 1710-2700 MHz | 3400-3800 MHz
- Maximum gain: 2 dBi @ 1710-2700 MHz
- Polarisation: Linear Vertical
- Dimensions: 252 mm x Ø75 mm
- Product Weight: 0.35 kg
- Temperature range: -40 ºC to 80 ºC
- Environmental Conditions: Outdoor/Indoor
