ORDERING DESIGNATIONS TYPE
PRODUCT NO: YA 2100 130001553
SPECIFICATIONS
ELECTRICAL
MODEL YA 2100
ANTENNA TYPE 9-element Yagi-antenna
FREQUENCY 1900 – 2200 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Linear
(vertical or horizontal dep. on orientation)
GAIN 10 dBi 8 dBd
FRONT-TO-BACK-RATIO ≥ 15 dB
HALF-POWER BEAMWIDTH Approx. 35° (E-plane)
Approx. 45° (H-plane)
BANDWIDTH 200 MHz
SWR ≤ 1.8 @ 1.9 - 2.2 GHz
MAX. POWER 25 W
MECHANICAL
MATERIALS Antenna: Gold aludine, Aluminium
Fittings: Stainless steel
COLOUR Aludine “gold”
TOTAL LENGTH 570 mm
MAX. ELEMENT HEIGHT 100 mm
WEIGHT 300 g (incl. bolts)
CONNECTORS FME-connector
(cable to be ordered separately)
MOUNTING On 30 – 50 mm dia. mast tube
TYPICAL SWR AND GAIN CURVES
SWR
¯ ¯ ¯
Gain dBi
¯¯¯¯¯¯¯
f. MHz
With the YA 2100 you will experience a significant improvement of the quality of your communication on the 2100 MHz networks.
INSTALLATION STEPS

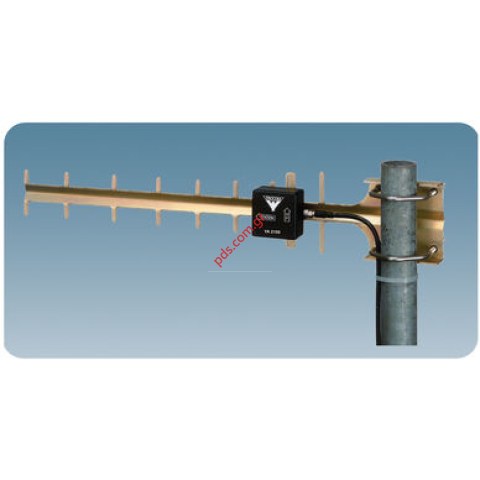

Mount the antenna on a 30-50 mm diameter mast tube using the accompanying fittings and bolts (see illustration overleaf). The antenna is to be oriented as indicated on the connection box of the antenna.
Direct the antenna towards the nearest base station for the 2100 MHz network in question. The correct direction may be determined using the field strength indicator telephone:
Mount the antenna on your mast.
Rotate the antenna (in the horizontal plane) while observing the field strength indicator.
Choose the direction in which the highest field strength level is observed and fasten the antenna.
Top of page
TYPICAL RADIATION PATTERN (E-PLANE)
TYPICAL RADIATION PATTERN (H-PLANE)
