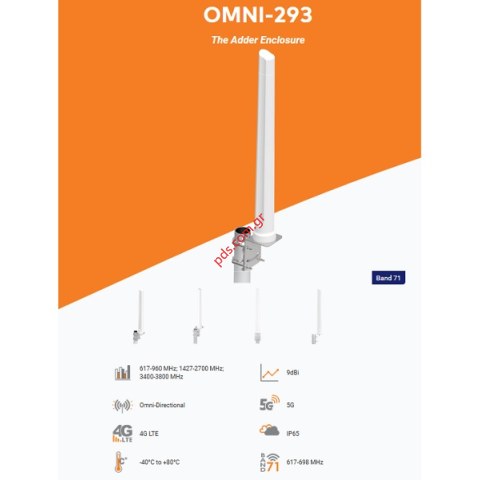

The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
High gain omni-directional antenna
Includes band 71 (617 to 698 MHz) and 3.5 GHz 5G bands
Wideband operation makes the antenna future proof
Antenna is purpose built for urban and rural applications
Dust and water-resistant enclosure with IP65 rating
Industry (Application)
Commercial & Industrial Antennas, Farming & Agricultural Antennas, IoT M2M & Smart Meter Antennas, Urban & Rural Cellular Antennas
Technology
Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band
617-698MHz, 698-803MHz, 791-894MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Cellular Freq. Range
617 – 3800 MHz
Gain
9dBi
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality
Omni-Directional
LTE/4G Bands
B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Wi-Fi Standard
Wi-Fi 3 (802.11g)
Mounting Type

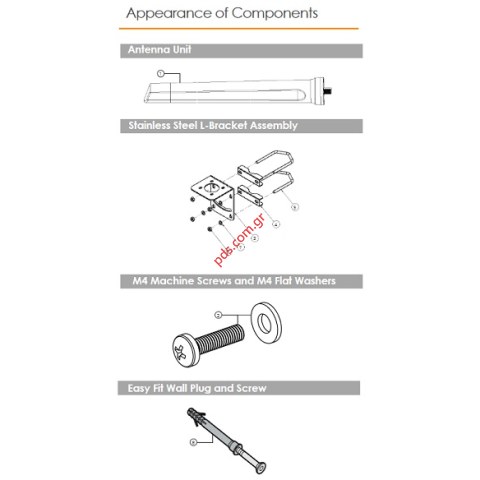

Pole Mount, Wall Mount
Connectors
N-Type
MIMO
SISO
Polarisation
Linear Polarised
Environmental
IP65
Enclosure Name
Adder
Enclosure Size
Large
LTE Ports
1
