Marine Ship GPS Receiver Antenna Module NMEA 0183 Baud Rate 4800 DIY Connector
Description:
1. Built-in 28db gain two-stage LNA amplifier active antenna.
2. The baud rate is optional, 4800, 9600, 38400, 115200.
3. Output statement: RMC, VTG, GGA, GSA, GSV, GLL can choose to output.
4. Level can be selected: TTL or RS232.
5. Data output frequency is optional, 1HZ - 10HZ
6. Built-in FLASH can save the parameter settings
For outdoor positioning, water detection of marine navigation, GNSS, time synchronization etc..
We can provide a number of customized services, if you have a special specification needs to consult our customer service staff, we will provide you with satisfactory service!
NMEA:0183 (2.3-4X)
The default baud rate: 9600 (set 19200-115200-38400-57600)
Refresh frequency: default 1HZ (set 1-10HZ)
Built in: FLASH can save settings
Support: 12V wide voltage supply.
Operating voltage 12V
Cable length: 5M

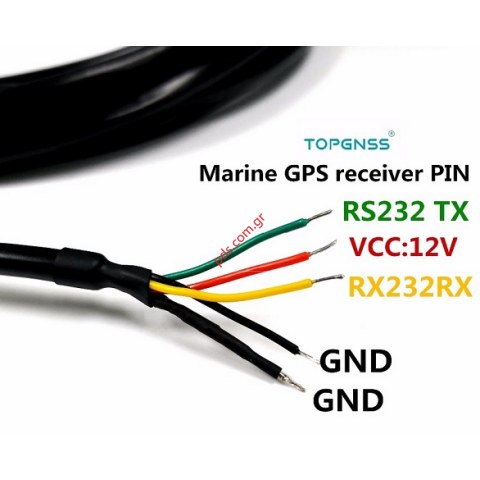

Output protocol mode: RS232
Waterproof grade: IPX67
