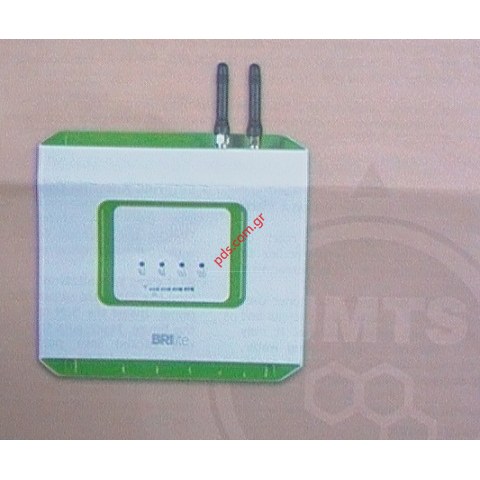

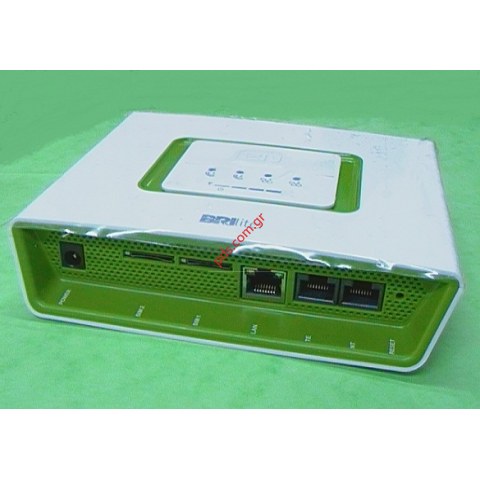

Τερματικό κινητής τηλεφωνίας ISDN FCT 2N BRI Lite με 1 πόρτα BRA SO (ISDN) και ενεργοιποημένο 2 κανάλι φωνής (2 SIM).
Digital GSM Gateways (BRI) are used for saving costs related to calls to GSM from landlines by the smart directing of calls to two different operators (2 SIM cards inside the gateway). BRI gateways are very common among users who use an ISDN BRI connection as it is possible to connect to any digital PBX!
With the option of connecting to a free port of a digital PBX The user chooses from 2 versions - 1SIM/2SMI (calling one/two operators).
The 2N ISDN GSM Gateway (GSM router) connected to a PBX ISDN port (BRI, So) transmits GSM services to ISDN user terminals. In addition to cost-efficient calls, it provides the following services: calling line identification presentation (CLIP), connection status displaying, advice of charging (AOC), SMS send/receive using the ISDN telephone set, and billing data recording.
DISA provides DDI from the GSM network. The ISDN BRI GSM Gateway (ISDN router) welcomes the calling party with a DISA message and receives the number in the DTMF mode. Then, it converts the number into the DDI (in the PTP configuration) or MSN (in the PTMP configuration) mode. The least-cost routing (LCR) service helps establish connection alternatively by analysing the number (e.g. via the "netcall", etc.). The originally dialled number is completed as required by the Gateway program setup.
All called numbers, including connection date and time, are recorded in the 2N ISDN GSM Gateway buffer. Outgoing calls are checked by the call barring table, which disables expensive calls.
2N development department has implemented an interesting feature for those who don't want to learn 2N's ISDN BRI GSM Gateway configuration - Dynamic Clip Routing on ISDN-BRI Gateways. This feature enables you to make configuration settings on your company PBX only without programming our 2N GSM Gateways.
With the latest version of SMS server software you can get the advantage of SMS delivery reports. Since now, you may have a full review of your messages, whether they were delivered and exactly when.
Benefits for customers:
- Least Cost Routing
- 2 SIM cards
- CallBack
- auto Clip routing
- SMS sending/receiving
- SMS at no answer
- Free minutes counting
- Remote monitoring
Usage:
- As a GSM Gateway (FCT)
- As an SMS Gateway
- As a Routing Gateway
- As a Mobility Extension
Intended for:
- Customers using PBX with free digital port
More information:
The 2N® BRI Lite (GSM router) connected to a PBX ISDN port (BRI, So) transmits GSM services to ISDN user terminals. In addition to cost-efficient calls, it provides the following services: calling line identification presentation (CLIP), connection status displaying, advice of charging (AOC), SMS send/receive using the ISDN telephone set, and billing data recording.
DISA provides DDI from the GSM network. The ISDN BRI GSM Gateway (ISDN router) welcomes the calling party with a DISA message and receives the number in the DTMF mode. Then, it converts the number into the DDI (in the PTP configuration) or MSN (in the PTMP configuration) mode. The least-cost routing (LCR) service helps establish connection alternatively by analyzing the number (e.g. via the "netcall", etc.). The originally dialed number is completed as required by the Gateway program setup.
All called numbers, including connection date and time, are recorded in the 2N® BRI Lite GSM Gateway buffer. Outgoing calls are checked by the call barring table, which disables expensive calls.
2N development department has implemented an interesting feature for those who don't want to learn 2N's ISDN BRI configuration - Dynamic Clip Routing on ISDN-BRI Gateways. This feature enables you to make configuration settings on your company PBX only without programming our 2N GSM Gateways.
With the latest version of SMS server software you can get the advantage of SMS delivery reports. Since now, you may have a full review of your messages, whether they were delivered and exactly when.
NEW FEATURES:
-
2N® Mobility Extension feature added!
With the latest firmware you may use 2N® BRI LITE gateway. Call transfer, remote possibility to disable/enable this feature (and separately also SMS at No Answer) for each user is a matter of course. Maximum number of users is 8, given by limits of Point To Multi point connection which provides 8 MSN numbers. For ME the
2N® BRI LITE must be connected in TE Mode to the PBX and also a license must be requested from 2N.
- Follow me - makes you accessible any time and anywhere on a mobile phone.
-
Intelligent Incoming Call Routing - enables to assign the extension number to be called to each calling number. Having detected the number, the GSM Gateway makes an automatic DDI according to the GSM Gateway (FCT) program table.
Features:
-
2N® Mobility Extension
-
Efficient Least Cost Routing (LCR)
-
CallBack
-
Follow Me feature for up to 8 users
-
High-quality voice transmission (EFR super sound)
-
Intelligent routing of incoming calls based on history of outgoing calls
-
DTMF dial-in with voice message
-
SMS sending and receiving
-
Call data records
-
SMS message in case of a missed call
-
PBX connection by digital BRI ISDN
-
Routing by used B-channel
-
Worldwide use (GSM 850/1900 MHz or 900/1800 MHz)
