Specifications Range

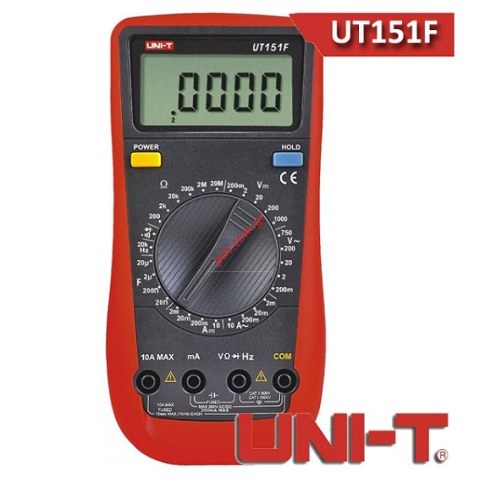

Model UT151F , ut-151f
DC Voltage (V) 200mV/2V/20V/ 200V/600V ±(0.05%+3)
AC Voltage (V) 200mV/2V/20V/ 200V/600V ±(0.5%+10)
DC Current (A) 2mA/20mA/200mA/ 10A ±(0.5%+5)
AC Current (A) 2mA/20mA/ 200mA/10A ±(0.8%+10)
Resistance (Ω) 200Ω/2kΩ/20kΩ/ 200kΩ/2MΩ/20MΩ ±(0.3%+1)
Capacitance (F) 20nF/ 200nF/ 2μF/ 20μF ±(4%+20)
Frequency (Hz) 20kHz ±(1.5%+5)
Features
Display Count 20000
Manual Range √
Diode √
Auto Power Off √
Continuity Buzzer √
Low BatteryIndication √
Data Hold √
Input Impedance for DCV ≥10MΩ √
General Characteristics
Power 9V battery (6F22)
LCD Size 63mm X 29mm
Product Color Red and grey
Product NetWeight 300g
Product Size 186mm X 91mm X39mm
StandardAccessories Battery, test lead
Standard Individual Packing Gift box, English manual
