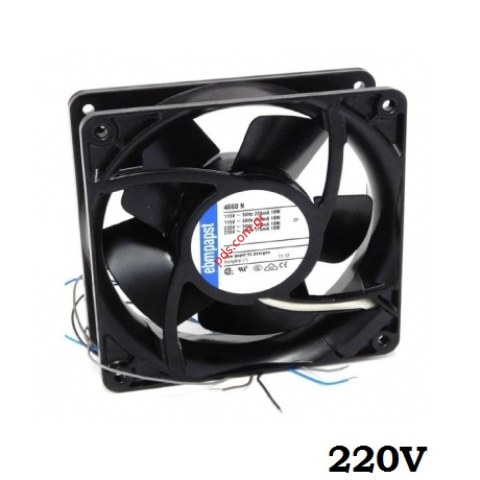

Product Data Sheet 4660 N
11/05/2014
1 General
Fan type Fan
Rotational direction looking at rotor clockwise
Airflow direction Air intake over struts
Bearing system Sleeve bearing
Mounting position any
Balancing grade 2,5
2 Mechanics
2.1 General
Width 119,0 mm
Height 119,0 mm
Depth 38,0 mm
Diameter 0,0 mm
Weight 0,550 kg
Housing material Metal
Impeller material Metal
Max. torque when mounted across both mounting
flanges
wire outlet corner: 190 Ncm
remaining corners: 310 Ncm
Screw size ISO 4762 - M4 degreased, without an additional
brace and without washer
Product Data Sheet 4660 N
11/05/2014 page 4 of 11
2.2 Connections
Electrical connection Wires
Length of lead wire L = 310,0 mm
Tolerance +- 10,0 mm
Length of tube see drawing
Tolerance
Wire gauge (AWG) 22
Insulation diameter 1,09 mm
Plug see drawing
Contact see drawing
Colour Operation
Wire 1 black
Wire 2 gray
Wire 3 blue
Wire 4 brow
